KVVRP,KYJVRP,KVVRP-22,KYJVRP-22,KVVRP-32,KYJVRP-32
XITE
8544492100
Copper
450/750V
XLPE or PVC
XLPE or PVC
SWA ,STA or Unarmored
Flame Retardant, Antiflaming, Fire resistance, LSZH
|
|
Conductor: single strand copper wire or stranded oxygen-free copper wire
Product Features:
Rated voltage: 450 / 750V or 0.6/1 kv
The working temperature: ordinary type does not exceed 70 ℃, flame retardant does not exceed 105 ℃
Insulation: PVC/XLPE
Sheath: PVC/XLPE/LSZH/FR-PVC/PE
Color: black
Product standard：GB/T 9330-2008.
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012.

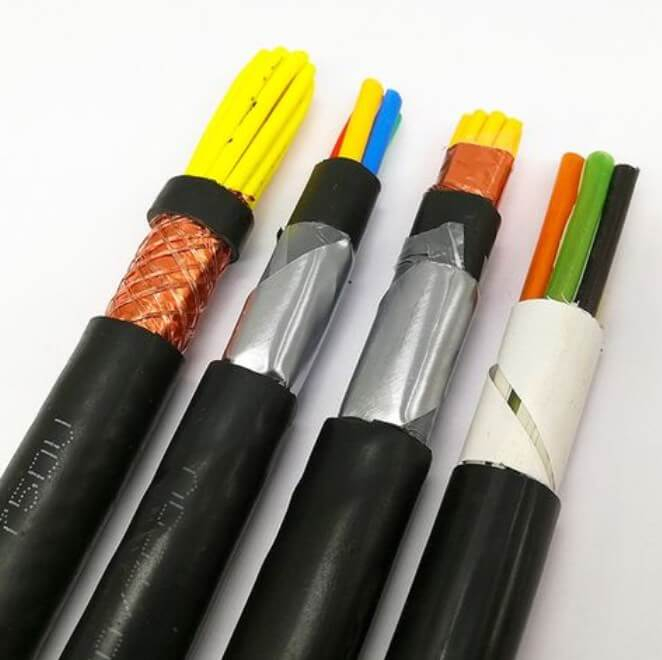

The type and specifications of cable are shown in the table below.
| Type | Name | Section Area(mm2) | No. of Core |
| KVVR | The control flexible cable of Copper conductor, PVC insulated, and PVC sheath | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
| 10 | 2c to 14 core | ||
| KYJVR | The control flexible cable of Copper conductor, XLPE insulated, and PVC sheath | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
| 10 | 2c to 14 core | ||
| KVVR-22 | The control flexible cable of Copper conductor, PVC insulated, PVC sheathed, and steel tape armoring | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
| 10 | 2c to 14 core | ||
| KYJVR-22 | The control flexible cable of Copper conductor, XLPE insulated, PVC sheathed, and steel tape armoring | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
| 10 | 2c to 14 core | ||

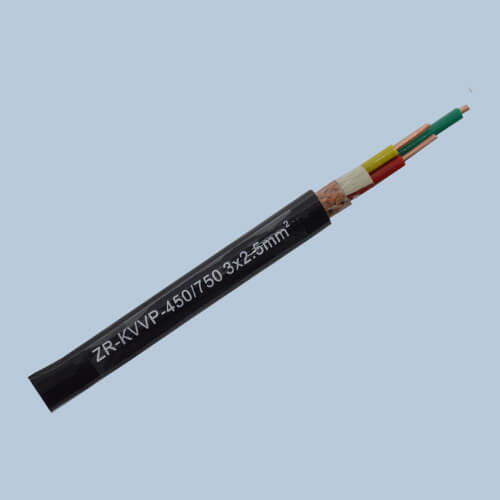

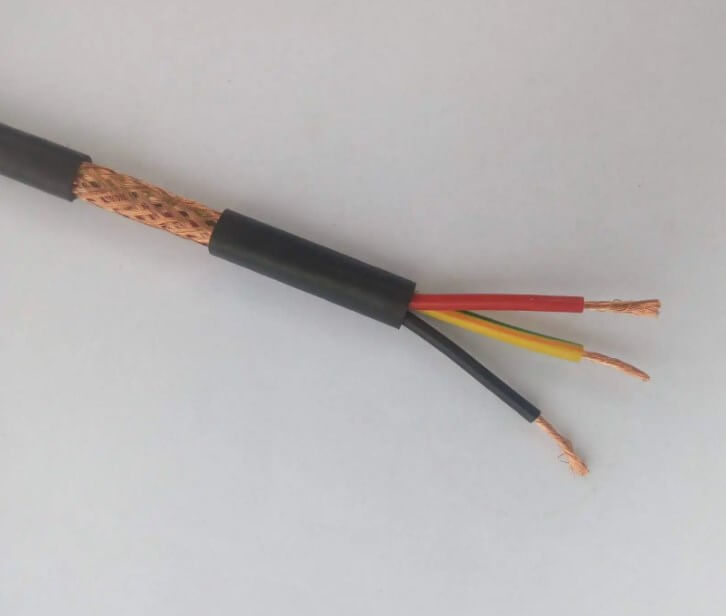

| KVVRP | The control flexible cable of Copper conductor, PVC insulated, PVC sheathed, and braided shield by copper wire | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
| 10 | 2c to 14 core | ||
| KYJVRP | The control flexible cable of Copper conductor, XLPE insulated, PVC sheathed, and braided shield by copper wire | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
| 10 | 2c to 14 core | ||

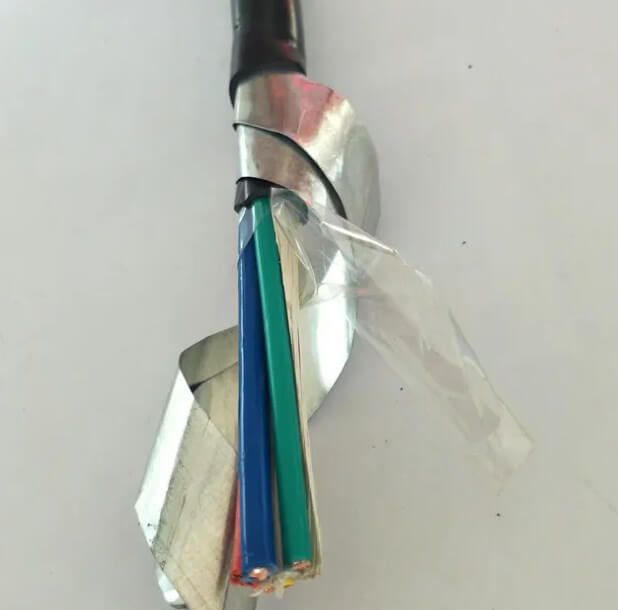

| KVVRP2 | The control flexible cable of Copper conductor, PVC insulated, PVC sheathed, and shield by copper tape | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
| 10 | 2c to 14 core | ||
| KYJVRP2 | The control flexible cable of Copper conductor, XLPE insulated, PVC sheathed, and shield by copper tape | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
| 10 | 2c to 14 core | ||
| KVVRP-22 | The control flexible cable of Copper conductor, PVC insulated, PVC sheathed, braided shield by copper wire, and steel tape armoring | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
| 10 | 2c to 14 core | ||
| KYJVRP-22 | The control flexible cable of Copper conductor, XLPE insulated, PVC sheathed, braided shield by copper wire, and steel tape armoring | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
| 10 | 2c to 14 core | ||
| KVVR-32 | The control flexible cable of Copper conductor, PVC insulated, PVC sheathed, and fine round steel wire armoring | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
| 10 | 2c to 14 core | ||
| KYJVR-32 | The control flexible cable of Copper conductor, XLPE insulated, PVC sheathed, and fine round steel wire armoring | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
| 10 | 2c to 14 core | ||
This product is suitable for the control monitoring circuit of AC rated voltage U0/U of 450/750V and below and the connecting line of electrical instrument in protection circuit and power distribution device. It has good shielding effect and anti-interference effect.
a. Use as home appliance wiring cable, building wire
b. Use as electrical and electronic equipment internal connecting wire
c. Use as lighting wire
d. House wiring cable
a.The temperature should not be lower than 0 °C when the cable laying.
b.The long-term allowable operating temperature of PVC insulated cable conductors is 70 °C, and the maximum operating temperature of cable conductors is 160 °C when short-circuited (maximum duration does not exceed 5 seconds); the long-term allowable operating temperature of XLPE insulated cable conductors is 90 °C, short-circuit (The maximum duration does not exceed 5S) The maximum operating temperature of the cable conductor is 250 ° C;
c.The allowable bending radius of the cable: the cable without armor layer shall be not less than 6 times the outer diameter of the cable; the cable with armored or copper tape shielding structure shall be not less than 12 times the outer diameter of the cable; and the cable with shielded, it should be no less than 6 times the outer diameter of the cable.
Cables with Low smoke zero halogen, fire resistance, flame-retardant is our advantage, we have National Patent Certificate on it.
We have CCC and ISO9001 certificate, we can accept ODM, OEM and also can accept personal customized.
|
|
