RVVP, RYJVP
XITE
8544492100
Copper
300/500v, 450/750V
XLPE or PVC
PVC or PE or FR or LSZH
Unarmored
Flame Retardant, Antiflaming, Fire resistance, LSZH
 |  |

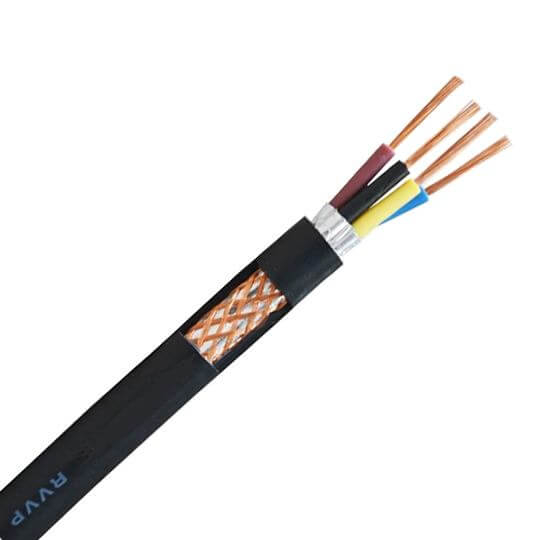

Item No.: 0.5 sq mm Copper Wire Shielded Flexible Cable
Description: Flexible wire of Copper conductor, PVC insulated and PVC sheathed, copper wire mesh braid shielding.
Core No.: 2 core, 3 core, 4 core, 5 core, 6 core, 7 core, 8 core, 10 core, 12 core, 15 core, 16 core, 19 core Multicore flexible cable
Production standard: GB/T5023.5-2008 JB/T 8734.3-2016
Application: This product is suitable for fixed wiring of power equipment with AC voltage of 300/500v or 450/750V , household electrical appliances, lighting, security monitoring cable, etc.
| Type | Name | Core No. | Nominal cross sectional area(mm2) |
| RVV | Flexible wire of Copper conductor, PVC insulated and PVC sheathed | 2 to 24 | 0.5-16 |
| RYJV | Flexible wire of Copper conductor, XLPE insulated and PVC sheathed | 2 to 19 | 0.5-16 |
| RVVP | Copper conductor PVC insulated and PVC sheathed copper wire braid shielded flexible cable | 2 to 24 | 0.5-16 |
| RYJVP | Copper conductor XLPE insulated and PVC sheathed copper wire braid shielded flexible cable | 2 to 19 | 0.5-16 |
Please note that the above these cables could make to Antiflaming power cable, Fire resistance power cable, LSZH power cable in rated voltage 1kv and below.
The feature of the Antiflaming power cable: This cable is hard to be on fire, when it happens, the extend fire point just be limited to a certain range. It is applicable to power stations, subways, tunnels, high-rise buildings, large industrial and mining enterprises, oil fields, coal mines and other places with high density of cable laying.
The feature of the Fire resistance power cable: This cable can not only transmit power under normal working conditions, but also when the fire or the combustion happens, can still maintain a certain time of normal operation . It is suitable for nuclear power plant, subway, tunnel, high-rise building and other places related to fire safety and fire rescue.
The feature of the LSZH power cable: This cable not only has the flame retardant performance, but also has low smoke and harmless (less toxicity and corrosion), suitable for the cable flame retardant, smoke density, toxicity index and other places with special requirements, such as subway, tunnel, nuclear power plant.
Flame retardant grade: ZC, ZB, ZA (IA).
Cables with Low smoke zero halogen, fire resistance, flame-retardant is our advantage, we have National Patent Certificate on it.
We have CCC and ISO9001 certificate, we can accept ODM, OEM and also can accept personal customized.
| |
