600/1000 volts Low Voltage 5 Core 35mm2 25mm2 50mm2 6mm2 10mm2 16m2m Copper XLPE Insulated PVC Sheathed SWA STA Steel Wire Armored Power Cable

600/1000v Copper or Aluminum conductor electrical power cable with XLPE insulation, PVC or PE outer sheath, STA steel tape or SWA steel wire armoured or non armoured low voltage power cable/kable
Availability:
  • YJV,YJV22,YJV32,YJV23,YJLV,YJLV22

  • XITE

  • 8544492100

  • Copper or Aluminum

  • 600/1000V

  • XLPE or PVC

  • PVC or PE

  • SWA ,STA or Unarmored

  • Flame Retardant, Antiflaming, Fire resistance, LSZH

600/1000 volts Low Voltage 5 Core 35mm2 25mm2 50mm2 6mm2 10mm2 16m2m Copper XLPE Insulated PVC Sheathed SWA STA Steel Wire Armored Power Cable


cable xlpe 600v-XITE 35mm xlpe cable-XITE

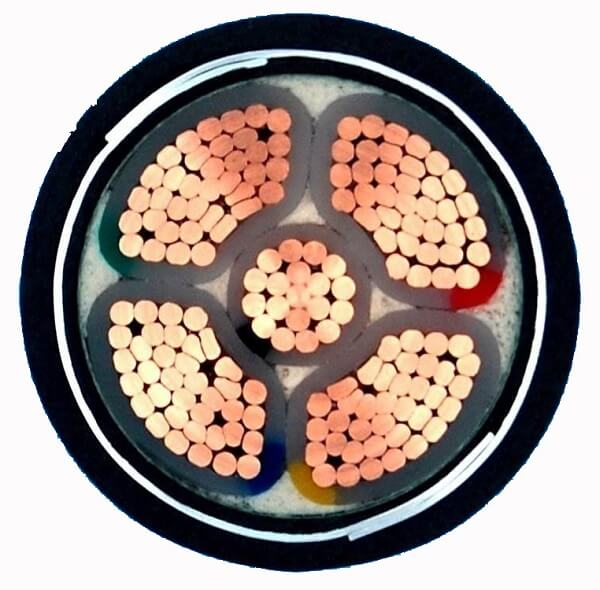

25mm xlpe cable Introduction:

Power cable: Copper conductor electric power cable with XLPE insulation, PVC or PE outer sheath, STA steel tape armoured or non armoured electrical power cable/kable

Type:YJV, YJV22,YJV23,YJV32

Core number: 5 core, 3+2 core, 4+1 core

Production Range : 1.5mm2, 2.5mm2, 4mm2, 6mm, 10mm2,16mm2, 25 mm2 , 35 mm2 , 50 mm2 , 70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 , 240 mm2 300 mm2 400 mm2 , 500 mm2,630mm2

Related Voltage: 0.6/1kV

NO.of cores×section (mm²) Permissible   A mpacity                                                              (A) Reference overall   diameter of cable(mm) Reference   weight of cable(kg/km)
YJV YJV22

Cu Cu
Cu
In air In ground In air In ground Unarmoured Armoured YJV YJV22
5×4 38 48 38 48 14.7 17.6 345 520
5×6 48 60 48 60 15.8 19 451 645
5×10 66 82 66 82 18.6 21.8 688 920
5×16 89 107 89 107 21.3 24.5 1011 1276
5×25 118 138 118 138 25.7 28.9 1553 1871
5×35 147 167 147 167 28.4 33 2071 2742
5×50 180 200 180 200 32.9 37.5 2892 3664
5×70 231 246 231 246 38.2 42.8 3974 4866
5×95 282 290 282 290 43.4 48.2 5326 6354
5×120 330 331 330 331 47.9 53.1 6657 7836
5×150 384 372 384 372 53.8 59.3 8310 9670
5×185 442 422 442 422 59.6 65 10228 11714
5×240 530 492 530 492 66.5 72.3 13103 14817
5×300 612 559 612 559 73.4 79.4 16239 18161

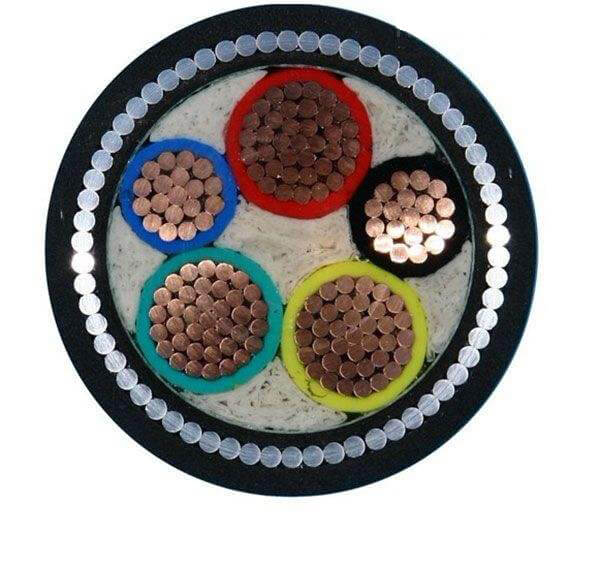

35mm xlpe cable Application:

This product is suitable for power transmission and distribution under AC rated voltage 0.6/1kv and working frequency 50Hz lines.


Low Voltage power cable is used to transmit and distribute power in power transmission and distribution system of 1kV. It is generally applied to the fields including power, mines, construction,  metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.

NO.of cores×section   (mm²) Permissible   A mpacity                                                              (A) Reference overall   diameter of cable(mm) Reference   weight of cable(kg/km)
YJV YJV22

Cu Cu
Cu
In air In ground In air In ground Unarmoured Armoured YJV YJV22
4x4+1x2.5 38 48 38 46 14.2 17.4 320 499
4x6+1x4 48 60 48 58 15.6 18.8 427 622
4x10+1x6 66 81 66 79 18.1 21.3 636 862
4x16+1x10 88 107 88 103 20.8 24 940 1199
4x25+1x16 118 137 118 133 24.9 28.1 1441 1748
4x35+1x16 144 165 144 160 27.1 31.9 1853 2509
4x50+1x25 177 196 177 191 31.6 36.2 2616 3359
4x70+1x35 227 244 227 238 36.5 41.1 3578 4429
4x95+1x50 277 288 277 281 41.6 46.4 4843 5829
4x120+1x70 325 329 325 320 46.3 51.3 6110 7250
4x150+1x70 375 369 375 361 51.2 56.3 7421 8676
4x185+1x95 433 418 433 408 56.8 62.2 9191 10606
4x240+1x120 518 488 518 475 63.2 69 11763 13393
4x300+1x150 625 555 605 541 70 76 14595 16428

xlpe 50mm2 cable advantages:

Low voltage power cable have higher long-term working temperature and greater current rating, and under the condition of the same environment, XLPE cable may be reduced size (normal cross section) 1 or 2 class in comparison with PVC cable. These are not only improving the quality and properties of products, but also reduce cables' production cost.


XLPE insulated power cable has a number of advantages than paper insulted and PVC insulated cables. XLPE cable has high electric strength, mechanical strength, high-ageing resistance, environment stress resisting anti-chemical corrosion,


and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.


XLPE cable have higher long-term working temperature and greater current rating, and under the condition of the same environment, XLPE cable may be reduced size (normal cross section) 1 or 2 class in comparison with PVC cable. These are not only improving the quality and properties of products, but also reduce cables' production cost.

NO.of cores×section   (mm²) Permissible   A mpacity                                                              (A) Reference overall   diameter of cable(mm) Reference   weight of cable(kg/km)
YJV YJV22

Cu Cu
Cu
In air In ground In air In ground Unarmoured Armoured YJV YJV22
3x4+2x2.5 38 48 38 46 14 17.2 302 477
3x6+2x4 48 60 48 58 15.3 18.5 404 595
3x10+2x6 65 81 65 78 17.6 20.8 592 811
3x16+2x10 87 106 87 102 20.3 23.5 879 1131
3x25+2x16 116 136 116 132 24 27.2 1338 1634
3x35+2x16 141 164 141 159 25.9 30.7 1650 2278
3x50+2x25 174 195 174 190 30.4 35 2355 3069
3x70+2x35 224 242 224 236 34.8 39.4 3213 4026
3x95+2x50 272 286 272 279 39.7 44.7 4353 5315
3x120+2x70 320 327 320 318 44.6 49.7 5566 6665
3x150+2x70 367 366 367 357 48.6 53.8 6600 7792
3x185+2x95 424 415 424 405 54 59.4 8264 9611
3x240+2x120 508 484 508 471 60.2 66 10501 12053
3x300+2x150 592 550 592 536 66.6 72.6 13044 14789

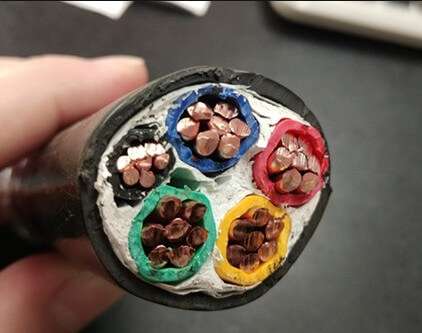

25 sqmm 3.5 core Using Feature:

1. Cable conductor allowed working temperature doesn't exceed 70 ºC in a long term

2. When the short circuit happened (the longest duration is no more than 5 seconds), the highest temperature of the cable conductor does not exceed 160 ºC.

3. The environment temperature should not below 0 ºC when cable laying, To warm up first when the temperature lower than 0 ºC .

4. The minimum bending radius of the multicore-non armoured cable shall not be less than 12 times of the outer diameter of cables, and the minimum bending radius of the mutilcore-armored cables shall not be less than 15 times of the outer diameter of cables. The minimum bending radius of the single core armoured cable shall not be less than 15 times of the outer diameter of cable, and the minimum bending radius of the single core -non armoured cable shall not be less than 20 times of the outer diameter of cable

5. Structure parameter of rated voltage 0.6/1KV XLPE insulated power cable


Please note that the above these cables could make to Antiflaming power cable, Fire resistance power cable, LSZH power cable in rated voltage 0.6/1 KV, PVC or XLPE insulated, PVC outer sheath.



Cables with Low smoke zero halogen, fire resistance, flame-retardant is our advantage, we have National Patent Certificate on it.

We have CCC and ISO9001 certificate, we can accept ODM, OEM and also can accept personal customized.
