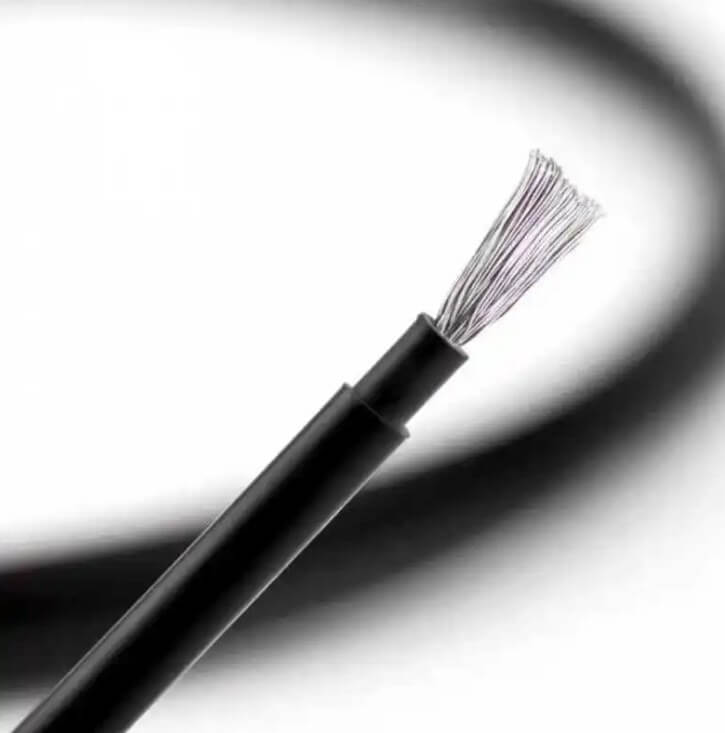

China 4mm2 Tinned Copper Conductor Single Core Solar DC Cable 4 sqmm Solar PV Cable

China 4mm2 Tinned Copper Conductor Single Core Solar DC Cable 4 sqmm Solar PV Cable, The solar cable is also called PV cable, which connects photovoltaic modules and inverters, and the cable is used in 600/1000V AC 1500V DC.
Availability:
  • PV,PV1-F

  • XITE

  • 8544492100

  • tinned copper

  • 600/1000V

  • XLPE and LSZH

  • XLPE and LSZH

  • Unarmored

  • Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. Flame retardant, cutting resistance and penetration resistance.

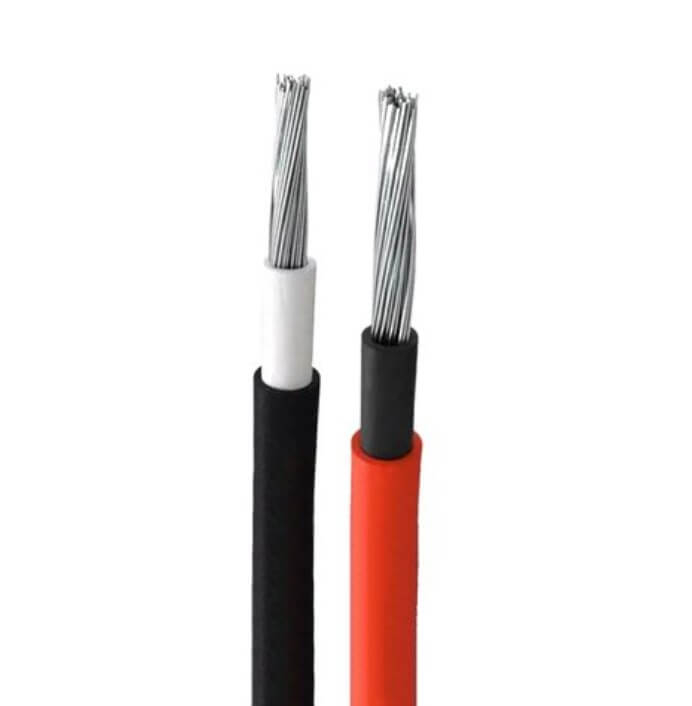

China 4mm2 Tinned Copper Conductor Single Core Solar DC Cable  4 sqmm Solar PV Cable

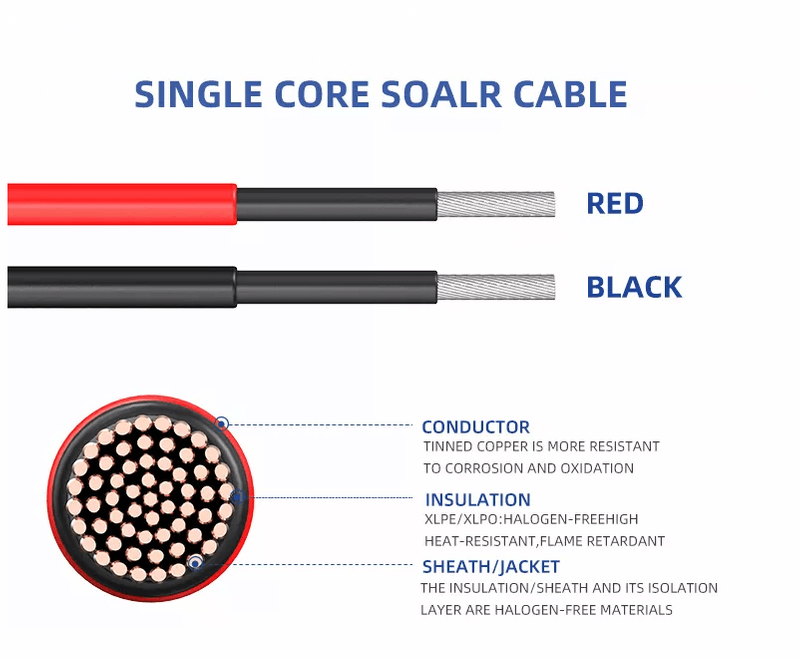

Single Core Solar Cable for sale-XITE CABLE dc cable for solar pv-XITE


4mm2 solar cable introduction:

Conductor: tinned copper wire

Nominal Section: 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2 PV1 - F

18, 16 and 14, 12, 10, 8, 6, 4, 2mm2 PV wire

Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.

Sheath: low smoke and halogen free material thickness > 0.5mm.

parameters

Ambient temperature: - 40 ℃ ~ + 90 ℃

The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)

Limited voltage: AC0.6/1kv


The solar cable is also called PV cable, which connects photovoltaic modules and inverters, and the cable is used in 600/1000V AC 1500V DC. Solar energy systems are often used under harsh environmental conditions, such as high temperature and ultraviolet radiation. Therefore, the solar cable is different from ordinary cables. In comparison, PV cables have the characteristics of temperature resistance, cold resistance, oil resistance, acid and alkali salt resistance, UV resistance, flame retardancy, and environmental protection.

Rated   Voltage 1000V AC
Conductor Material Tinned Copper
Insulation and Jacket   Material Irradiation cross-linked polyolefin, Halogen-free
Number of Conductors single-core/ dual-core
Cross Section 1.5 mm2~95 mm2
The High Voltage Test AC 6,5kV, or DC 1 5kV
Working Temperature -40~90
Max. Conductor   Temperature 120

4mm2 solar PV cable

Cross section                  (mm2) Conductor   Construction Outer              (mm) Resistance          Max. Current   Carring              Capacity
1*1.5 30/0.25 4.9 13.3 30
1*2.5 50/0.25 5.45 7.89 41
1*4 56/0.3 6.1 4.75 50
1*6 84/0.3 7.2 3.39 70
1*10 142/0.3 9 1.95 98
1*16 228/0.3 10.2 1.24 132
1*25 361/0.3 12 0.795 176
1*35 525/0.3 13.8 0.565 218
1*50 720/0.3 14.8 0.393 280
1*70 988/0.3 16.9 0.277 350
1*95 1349/0.3 18.7 0.21 410
1*120 1691/0.3 20.7 0.164 480

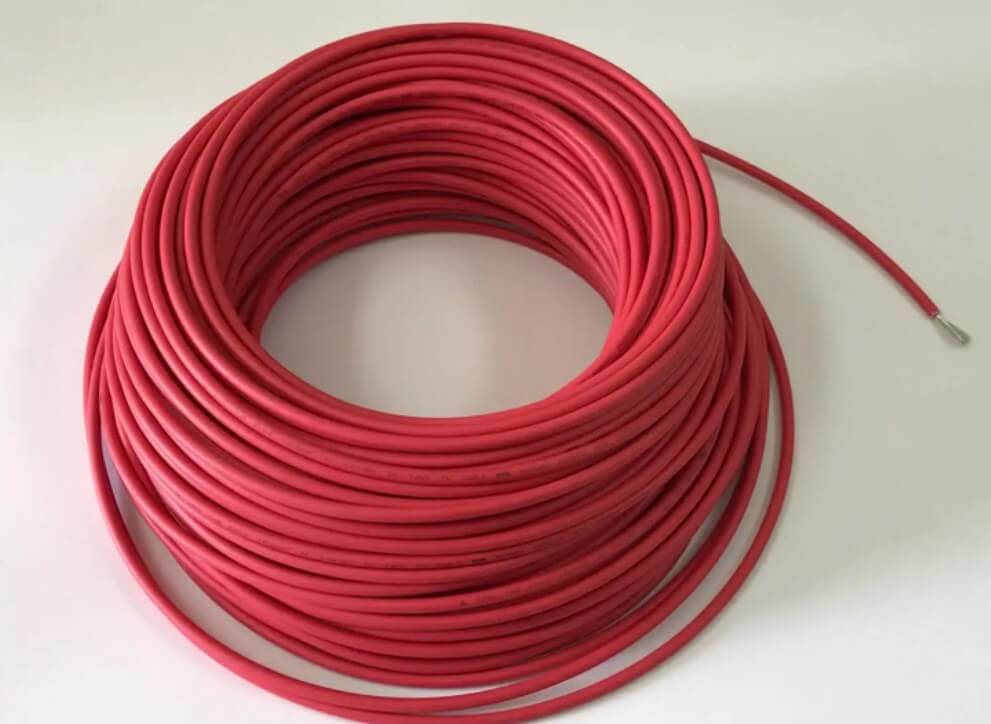

China 4mm solar pv cable Advantages for Solar cable:

* Dual wall insulation protection

* Resistant to impact, tear and abrasion

* Very good resistance to oil , chemicals UV, water and oxygen

* Excellent flexibility & stripability: for fast and easy installation

* Halogen-free: low smoke emission and low toxicity during fire

* A life time : lasts up to 30 years even under tough conditions

* Suitable to common connector types

* TUV certification approved


Cables with Low smoke zero halogen, fire resistance, flame-retardant is our advantage, we have National Patent Certificate on it.

We have CCC and ISO9001 certificate, we can accept ODM, OEM and also can accept personal customized.
