Availability: | |
---|---|
DJYPVP,DJYPVP22,DJYP1VP1,DJYP1VP1-22,DJYP2VP2,DJYP2VP2-22,DJYJPVP,DJYJPVP22,DJYJP1VP1,DJYJP1VP1-22,DJYJP2VP2,DJYJP2VP2-22
XITE
8544492100
Copper or tinned copper
300/500V
XLPE or PVC or PE
PVC or FR or LSZH

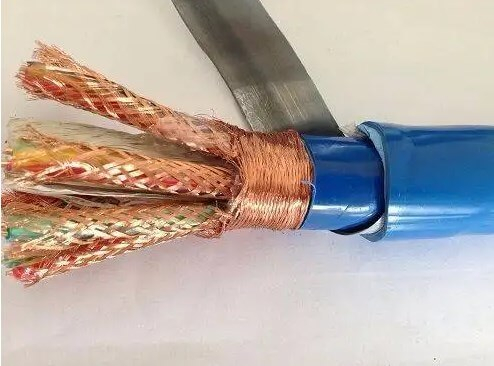

Unarmored or STA/SWA armored
Flame Retardant, Antiflaming, Fire resistance, LSZH
Nominal Size: 0.5mm2, 0.75mm2, 1.0mm2, 1.5mm2, 2.5mm2
Core: 2 core, 3 core
Pair: 1 pair, 2 pairs,3 pairs ,4 pairs ,5 pairs ,7 pairs ,8 pairs ,10 pairs ,12 pairs ,14 pairs,16 pairs ,19 pairs ,24 pairs ,27 pairs ,30 pairs, 37 pairs
Specification:1*2*1.5mm2, 2*2*1.5mm2, 3*2*1.5mm2, 4*2*1.5mm2, 5*2*1.5mm2, 7*2*1.5mm2, 8*2*1.5mm2, 10*2*1.5mm2, 12*2*1.5mm2, 14*2*1.5mm2 instrumentation cable
Conductor: Annealed copper or tinned copper
Insulation: PE,XLPE,PVC
Jacket: PVC,LSZH,FR
standards:TICW/06-2009 "computer and instruments cables"

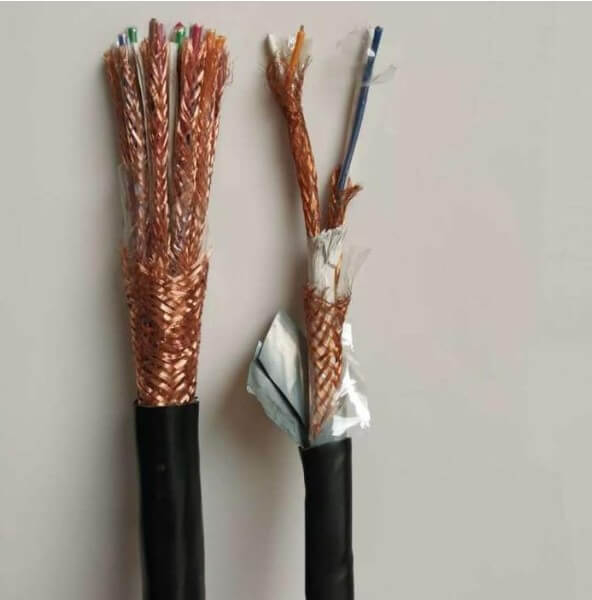

instrumentation screened cables including collectively screened (CAM) and those individually screened and collectively screened (ICAM). These can be Polyethylene (PE), cross-linked Polyethylene (XLPE), Polyvinyl Chloride (PVC). They also generally have a PVC outer sheath or low smoke zero halogen(LSZH) sheathing for areas where smoke and acid gas emission would cause a serious problem in a fire situation. BS5308 instrumentation cables, are also available armored with steel wire armour or steel tape, offering protection against mechanical stresses.
MODEL No. | Description | ||
Both general shielding and individual shielding | |||

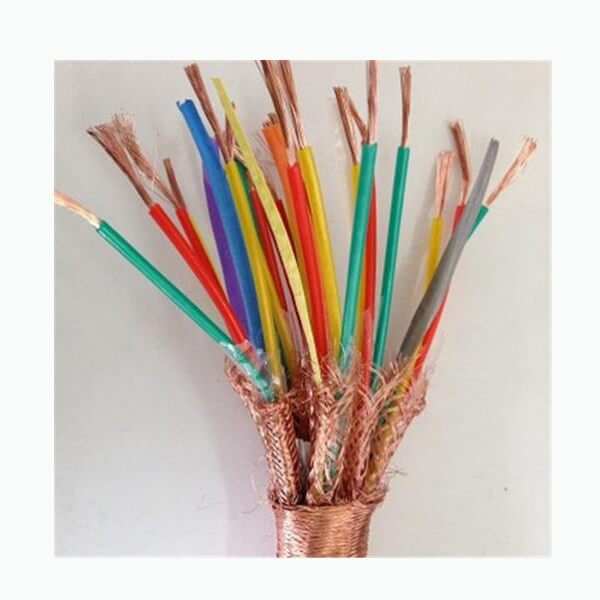

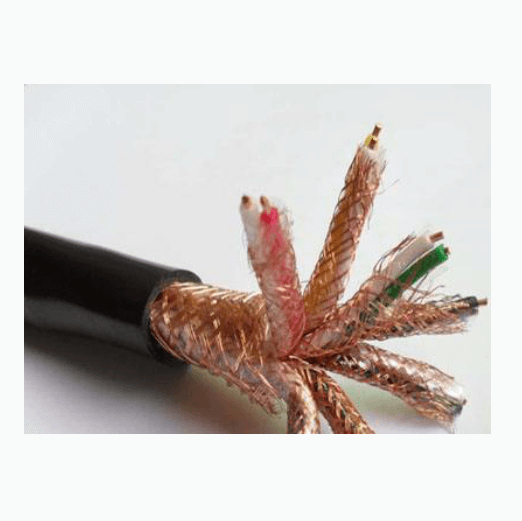

DJYPVP | The instrument cable with copper conductor, polyethylene insulation, both copper wire braided individual shielding and copper wire braided general shielding, PVC outer sheath | ||
DJYP1VP1 | The instrument cable with copper conductor, polyethylene insulation, both composite copper - plastic tape individual shielding and composite copper- plastic tape general shielding, PVC outer sheath | ||
DJYP2VP2 | The instrument cable with copper conductor, polyethylene insulation, both copper strip braided individual shielding and copper strip braided general shielding, PVC outer sheath | ||
DJYP3VP3 | The instrument cable with copper conductor, polyethylene insulation, both composite aluminum- plastic tape individual shielding and composite aluminum- plastic tape general shielding , PVC outer sheath | ||
DJYJPVP | The instrument cable with copper conductor, XLPE insulation, both copper wire braided individual shielding and copper wire braided general shielding, PVC outer sheath | ||
DJYJP1VP1 | The instrument cable with copper conductor, XLPE insulation, both composite copper- plastic individual shielding and composite copper -plastic tape general shielding, PVC outer sheath | ||
DJYJP2VP2 | The instrument cable with copper conductor, XLPE insulation, both copper strip braided individual shielding and copper strip braided general shielding, PVC outer sheath | ||
DJYJP3VP3 | The instrument cable with copper conductor , XLPE insulation, both composite aluminum - plastic tape individual shielding and composite aluminum - plastic tape general shielding, PVC outer sheath | ||
DJVPVP | The instrument cable with copper conductor , PVC insulation, both copper wire braided individual shielding and copper wire braided general shielding, PVC outer sheath | ||
DJVP1VP1 | The instrument cable with copper conductor , PVC insulation, both composite copper-plastic tape individual shielding and composite copper - plastic tape general shielding, PVC outer sheath | ||
DJVP2VP2 | The instrument cable with copper conductor, PVC insulation, both copper strip braided individual shielding and copper strip braided general shielding, PVC outer sheath | ||
DJVP3VP3 | The instrument cable with copper conductor, PVC insulation, both aluminum- plastic tape individual shielding and composite aluminum - plastic tape general shielding, PVC outer sheath |
1, Cable laying temperature with PVC , polyethylene insulation cable should not below 0℃ . Besides the cable laying temperature with XLPE insulation should not below -15℃
2, Regarding to the cable with PVC , polyethylene insulation, their conductor allowed long term operating temperature is 70 ℃ .When a short circuit
happened(The maximum duration is less than 5 seconds), The conductor allowed maximum operating temperature should be 160℃
3 To the cable with XLPE insulation, the conductor allowed long term operating temperature is 90℃. When a short circuit happened (The maximum duration is less than 5 seconds), The conductor allowed maximum operating temperature should be 250℃
4、The allowable bending radius of the cable: the cable with unarmored, should not be less than 6 times of the outer diameter of the cable. Cable with armoured or copper tape shielding shall not be less than 12 times of the outer diameter of the cable. And the flexible cable with shielding layer shall not be less than 6 times of the outer diameter of the cable
This product is suitable for power generation, metallurgy, petrochemical and other industrial and mining enterprises electronic instrument systems. Automatic control system of signal transmission and instruments detection,instrument connection with multi - pair shielding anti - interference cable; It is used as signal transmission and connection of checking appliances of distribution system, computer system and automatic system of power - generating metallurgy petroling chemistry.
1.Instrument cable minimizes noise and signal interference,delievery clean signal in harsh environment and general manufacturing operations.
2.Instrument cable have a maximun counductor temperature at 90 °c and a low temperature rating of -40 °c.
3.the cable jacket is resistent to sunlight ,moistureand vapour penetration.
4.Instrument cable is avaiable in individually shielded pairs or triads with an overall shield construction in 300v and 600v.
Please note that the above these cables could make to Antiflaming power cable, Fire resistance power cable, LSZH power cable in rated voltage 0.6/1 KV, PVC or XLPE insulated, PVC outer sheath.
The feature of the Antiflaming power cable: This cable is hard to be on fire, when it happens, the extend fire point just be limited to a certain range. It is applicable to power stations, subways, tunnels, high-rise buildings, large industrial and mining enterprises, oil fields, coal mines and other places with high density of cable laying
The feature of the Fire resistance power cable: This cable can not only transmit power under normal working conditions, but also when the fire or the combustion happens, can still maintain a certain time of normal operation . It is suitable for nuclear power plant, subway, tunnel, high-rise building and other places related to fire safety and fire rescue
The feature of the LSZH power cable: This cable not only has the flame retardant performance, but also has low smoke and harmless (less toxicity and corrosion), suitable for the cable flame retardant, smoke density, toxicity index and other places with special requirements, such as subway, tunnel, nuclear power plant
Flame retardant grade: ZC, ZB, ZA (IA)
Cables with Low smoke zero halogen, fire resistance, flame-retardant is our advantage, we have National Patent Certificate on it.
We have CCC and ISO9001 certificate, we can accept ODM, OEM and also can accept personal customized.
Nominal Size: 0.5mm2, 0.75mm2, 1.0mm2, 1.5mm2, 2.5mm2
Core: 2 core, 3 core
Pair: 1 pair, 2 pairs,3 pairs ,4 pairs ,5 pairs ,7 pairs ,8 pairs ,10 pairs ,12 pairs ,14 pairs,16 pairs ,19 pairs ,24 pairs ,27 pairs ,30 pairs, 37 pairs
Specification:1*2*1.5mm2, 2*2*1.5mm2, 3*2*1.5mm2, 4*2*1.5mm2, 5*2*1.5mm2, 7*2*1.5mm2, 8*2*1.5mm2, 10*2*1.5mm2, 12*2*1.5mm2, 14*2*1.5mm2 instrumentation cable
Conductor: Annealed copper or tinned copper
Insulation: PE,XLPE,PVC
Jacket: PVC,LSZH,FR
standards:TICW/06-2009 "computer and instruments cables"
instrumentation screened cables including collectively screened (CAM) and those individually screened and collectively screened (ICAM). These can be Polyethylene (PE), cross-linked Polyethylene (XLPE), Polyvinyl Chloride (PVC). They also generally have a PVC outer sheath or low smoke zero halogen(LSZH) sheathing for areas where smoke and acid gas emission would cause a serious problem in a fire situation. BS5308 instrumentation cables, are also available armored with steel wire armour or steel tape, offering protection against mechanical stresses.
MODEL No. | Description | ||
Both general shielding and individual shielding | |||
DJYPVP | The instrument cable with copper conductor, polyethylene insulation, both copper wire braided individual shielding and copper wire braided general shielding, PVC outer sheath | ||
DJYP1VP1 | The instrument cable with copper conductor, polyethylene insulation, both composite copper - plastic tape individual shielding and composite copper- plastic tape general shielding, PVC outer sheath | ||
DJYP2VP2 | The instrument cable with copper conductor, polyethylene insulation, both copper strip braided individual shielding and copper strip braided general shielding, PVC outer sheath | ||
DJYP3VP3 | The instrument cable with copper conductor, polyethylene insulation, both composite aluminum- plastic tape individual shielding and composite aluminum- plastic tape general shielding , PVC outer sheath | ||
DJYJPVP | The instrument cable with copper conductor, XLPE insulation, both copper wire braided individual shielding and copper wire braided general shielding, PVC outer sheath | ||
DJYJP1VP1 | The instrument cable with copper conductor, XLPE insulation, both composite copper- plastic individual shielding and composite copper -plastic tape general shielding, PVC outer sheath | ||
DJYJP2VP2 | The instrument cable with copper conductor, XLPE insulation, both copper strip braided individual shielding and copper strip braided general shielding, PVC outer sheath | ||
DJYJP3VP3 | The instrument cable with copper conductor , XLPE insulation, both composite aluminum - plastic tape individual shielding and composite aluminum - plastic tape general shielding, PVC outer sheath | ||
DJVPVP | The instrument cable with copper conductor , PVC insulation, both copper wire braided individual shielding and copper wire braided general shielding, PVC outer sheath | ||
DJVP1VP1 | The instrument cable with copper conductor , PVC insulation, both composite copper-plastic tape individual shielding and composite copper - plastic tape general shielding, PVC outer sheath | ||
DJVP2VP2 | The instrument cable with copper conductor, PVC insulation, both copper strip braided individual shielding and copper strip braided general shielding, PVC outer sheath | ||
DJVP3VP3 | The instrument cable with copper conductor, PVC insulation, both aluminum- plastic tape individual shielding and composite aluminum - plastic tape general shielding, PVC outer sheath |
1, Cable laying temperature with PVC , polyethylene insulation cable should not below 0℃ . Besides the cable laying temperature with XLPE insulation should not below -15℃
2, Regarding to the cable with PVC , polyethylene insulation, their conductor allowed long term operating temperature is 70 ℃ .When a short circuit
happened(The maximum duration is less than 5 seconds), The conductor allowed maximum operating temperature should be 160℃
3 To the cable with XLPE insulation, the conductor allowed long term operating temperature is 90℃. When a short circuit happened (The maximum duration is less than 5 seconds), The conductor allowed maximum operating temperature should be 250℃
4、The allowable bending radius of the cable: the cable with unarmored, should not be less than 6 times of the outer diameter of the cable. Cable with armoured or copper tape shielding shall not be less than 12 times of the outer diameter of the cable. And the flexible cable with shielding layer shall not be less than 6 times of the outer diameter of the cable
This product is suitable for power generation, metallurgy, petrochemical and other industrial and mining enterprises electronic instrument systems. Automatic control system of signal transmission and instruments detection,instrument connection with multi - pair shielding anti - interference cable; It is used as signal transmission and connection of checking appliances of distribution system, computer system and automatic system of power - generating metallurgy petroling chemistry.
1.Instrument cable minimizes noise and signal interference,delievery clean signal in harsh environment and general manufacturing operations.
2.Instrument cable have a maximun counductor temperature at 90 °c and a low temperature rating of -40 °c.
3.the cable jacket is resistent to sunlight ,moistureand vapour penetration.
4.Instrument cable is avaiable in individually shielded pairs or triads with an overall shield construction in 300v and 600v.
Please note that the above these cables could make to Antiflaming power cable, Fire resistance power cable, LSZH power cable in rated voltage 0.6/1 KV, PVC or XLPE insulated, PVC outer sheath.
The feature of the Antiflaming power cable: This cable is hard to be on fire, when it happens, the extend fire point just be limited to a certain range. It is applicable to power stations, subways, tunnels, high-rise buildings, large industrial and mining enterprises, oil fields, coal mines and other places with high density of cable laying
The feature of the Fire resistance power cable: This cable can not only transmit power under normal working conditions, but also when the fire or the combustion happens, can still maintain a certain time of normal operation . It is suitable for nuclear power plant, subway, tunnel, high-rise building and other places related to fire safety and fire rescue
The feature of the LSZH power cable: This cable not only has the flame retardant performance, but also has low smoke and harmless (less toxicity and corrosion), suitable for the cable flame retardant, smoke density, toxicity index and other places with special requirements, such as subway, tunnel, nuclear power plant
Flame retardant grade: ZC, ZB, ZA (IA)
Cables with Low smoke zero halogen, fire resistance, flame-retardant is our advantage, we have National Patent Certificate on it.
We have CCC and ISO9001 certificate, we can accept ODM, OEM and also can accept personal customized.
