ZR-YJV, ZR-YJV22, ZR-YJV32, ZR-YJV23
XITE
8544492100
Copper
600/1000V
PVC or XLPE
ZR-PVC, FR-PVC
SWA ,STA or non-armored
Flame Retardant, Antiflaming, Fire resistance, LSZH
| |

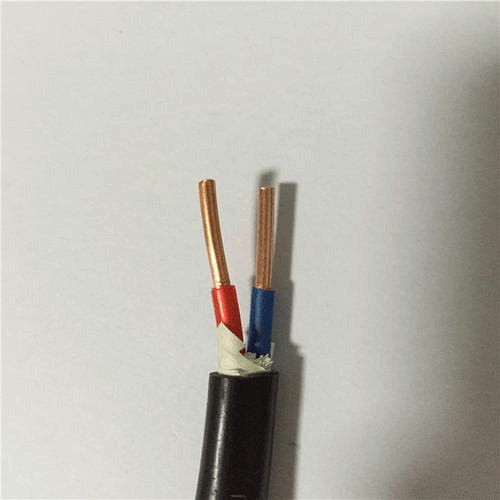

Type:ZR-YJV, ZR-YJV22, ZR-YJV32, ZR-YJV23

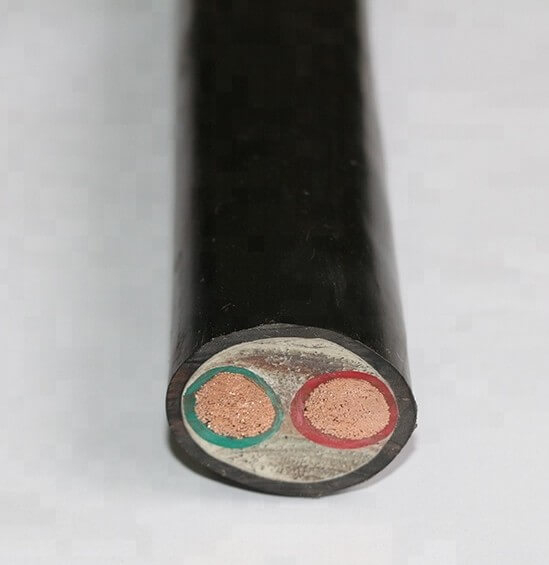

Core number: 2 core
Production Range : 1.5mm2, 2.5mm2, 4mm2, 6mm, 10mm2,16mm2, 25 mm2 , 35 mm2 , 50 mm2 , 70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 , 240 mm2 300 mm2
Related Voltage: 0.6/1kV
| NO.of cores×section (mm²) | Reference sheath thickness of cable(mm) | Reference overall diameter of cable(mm) | Reference weight of cable(kg/km) | |||
| Cu | Cu | |||||
| YJV | YJV22 | Unarmoured | Armoured | YJV | YJV22 | |
| 2x1.5 | 1.8 | 1.8 | 9.1 | 12.2 | 108 | 225 |
| 2x2.5 | 1.8 | 1.8 | 10.8 | 13 | 135 | 261 |
| 2x4 | 1.8 | 1.8 | 11.2 | 13.9 | 175 | 312 |
| 2x6 | 1.8 | 1.8 | 12.2 | 14.9 | 225 | 374 |
| 2x10 | 1.8 | 1.8 | 15.2 | 18.4 | 328 | 538 |
| 2x16 | 1.8 | 1.8 | 17.3 | 20.5 | 461 | 700 |
| 2x25 | 1.8 | 1.8 | 20.4 | 23.6 | 659 | 939 |
| 2x35 | 1.8 | 1.8 | 22.4 | 25.6 | 868 | 1174 |
| 2x50 | 1.8 | 1.8 | 20.2 | 23.4 | 1116 | 1393 |
| 2x70 | 1.8 | 2 | 22.5 | 26.2 | 1514 | 2132 |
| 2x95 | 1.9 | 2.1 | 25.4 | 29.5 | 2017 | 2694 |
| 2x120 | 2 | 2.2 | 28.3 | 33 | 2526 | 3276 |
| 2x150 | 2.1 | 2.4 | 31.3 | 36.1 | 3139 | 3997 |
This product is suitable for power transmission and distribution under AC rated voltage 0.6/1kv and working frequency 50Hz lines.
Low Voltage power cable is used to transmit and distribute power in power transmission and distribution system of 1kV. It is generally applied to the fields including power, mines, construction, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.
Please note that the above these cables could make to Antiflaming power cable, Fire resistance power cable, LSZH power cable in rated voltage 0.6/1 KV, PVC or XLPE insulated, PVC outer sheath.

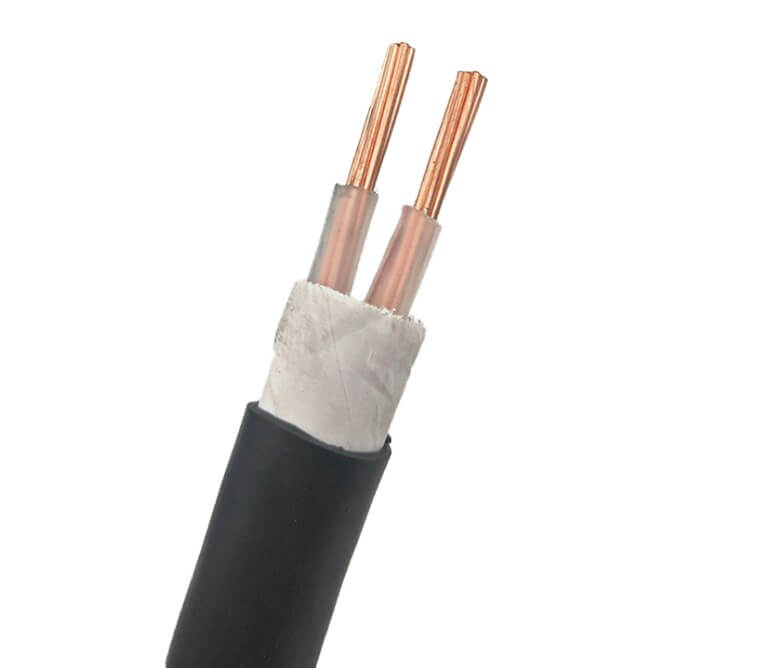

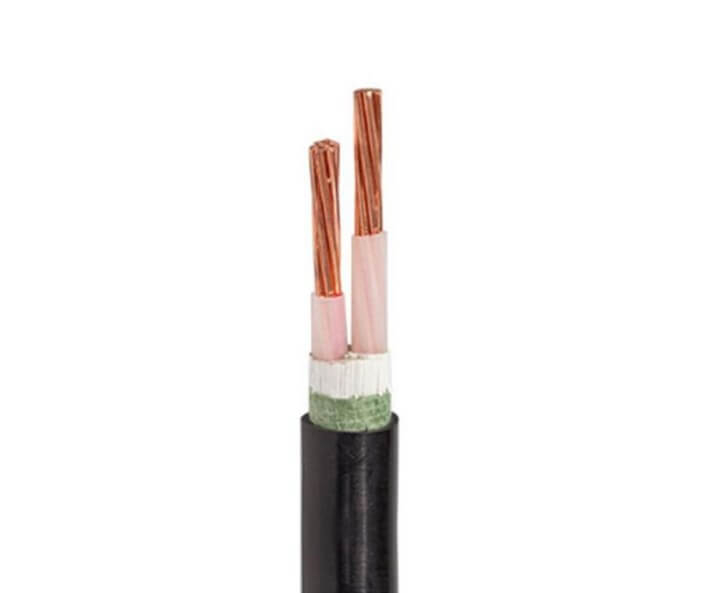

The feature of the Fire resistance power cable: This cable can not only transmit power under normal working conditions, but also when the fire or the combustion happens, can still maintain a certain time of normal operation . It is suitable for nuclear power plant, subway, tunnel, high-rise building and other places related to fire safety and fire rescue
Flame retardant grade: ZC, ZB, ZA (IA)
Armored cable with steel tape to enhance the mechanical properties of the cable, the cable can withstand external mechanical pressure.
steel tape armor/steel foil armoured,steel wire armoured/steel wire armoring/SWA.
Steel tape armored cable models: VV22, VV23, VLV22, VLV23, YJV22, YJV23, YJLV22, YJLV23,ZR-VV22, NH-VV22,WDZ-YJV22, WDZ-YJV23,WDZ-YJY22
Armoured cables are often referred to as steel wire armoured cables, SWA cable, mains power cable, single core power cable, and multi-core booklet armoured cable.
Please note that the above these cables could make to Antiflaming power cable, Fire resistance power cable, LSZH power cable in rated voltage 0.6/1 KV, PVC or XLPE insulated, PVC outer sheath.
Cables with Low smoke zero halogen, fire resistance, flame-retardant is our advantage, we have National Patent Certificate on it.
We have CCC and ISO9001 certificate, we can accept ODM, OEM and also can accept personal customized.
| |
