Availability: | |
---|---|
KVV32,KYJV32,KVVP32,KYJVP32,KVVP2-32,KYJVP2-32,KVVP3-32
XITE
8544492100
Copper
450/750V
XLPE or PVC
XLPE or PVC
SWA ,STA armored
Flame Retardant, Antiflaming, Fire resistance, LSZH
Rated voltage: 450 / 750V
The working temperature: ordinary type does not exceed 70 ℃, flame retardant does not exceed 105 ℃.
Conductor: single strand copper wire or stranded oxygen-free copper wire
This product is suitable for the control monitoring circuit of AC rated voltage U0/U of 450/750V and below and the connecting line of electrical instrument in protection circuit and power distribution device. It has good shielding effect and anti-interference effect.
Product standard:GB/T 9330-2008.
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012.
The type and specifications of cable are shown in the table below.
Type | Name | Section Area(mm2) | No. of Core |

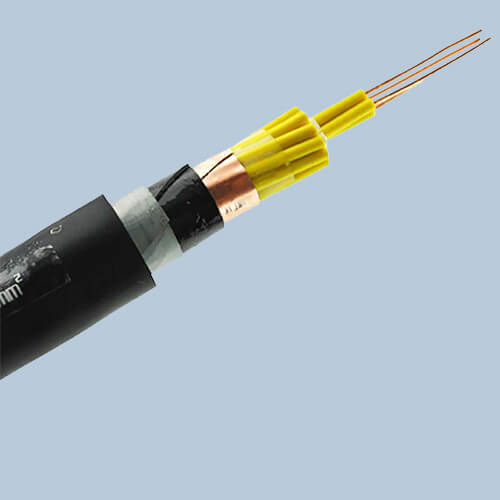

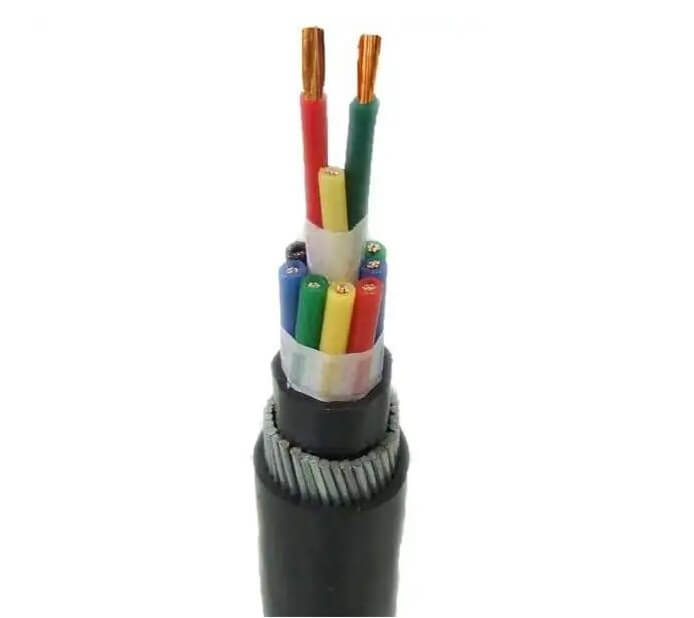

KVV-32 | Control cable of copper conductor, PVC insulated, PVC sheathed, and fine round steel wire armoring | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
10 | 2c to 14 core | ||
KVVR-32 | The control flexible cable of Copper conductor, PVC insulated, PVC sheathed, and fine round steel wire armoring | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
10 | 2c to 14 core | ||
KYJV-32 | Control cable of copper conductor, XLPE insulated, PVC sheathed, and fine round steel wire armoring | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
10 | 2c to 14 core | ||
KYJVR-32 | The control flexible cable of Copper conductor, XLPE insulated, PVC sheathed, and fine round steel wire armoring | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
10 | 2c to 14 core | ||
control cable are suitable for the wiring of electrical controlling equipments and instrument,monitoring and controlling return circuit,electrical protection and measurement in power distribution unit under the
circumstance that the rated voltage is up to 450/750V AC. selection of high quality Control Cables includes flexible control cables and flexible automation cables.
These cables are supplied to a variety of industries and applications, including robotics, manufacturing, construction, power and distribution, and more. They are common in both commercial and industrial markets.
Copper core PVC insulated electric cable is a fine and ideal cable with conductor of plain annealed copper wires,solid or stranded.These cables are used for general purpose,as building wire for power, lighting and control wire to electrical appliances,suitable for use in conduit and for fixed,protected installation. The cable can be of flame ratardance,fire resistance and other property.
a.The temperature should not be lower than 0 °C when the cable laying.
b.The long-term allowable operating temperature of PVC insulated cable conductors is 70 °C, and the maximum operating temperature of cable conductors is 160 °C when short-circuited (maximum duration does not exceed 5 seconds); the long-term allowable operating temperature of XLPE insulated cable conductors is 90 °C, short-circuit (The maximum duration does not exceed 5S) The maximum operating temperature of the cable conductor is 250 ° C;
c.The allowable bending radius of the cable: the cable without armor layer shall be not less than 6 times the outer diameter of the cable; the cable with armored or copper tape shielding structure shall be not less than 12 times the outer diameter of the cable; and the cable with shielded, it should be no less than 6 times the outer diameter of the cable.
Cables with Low smoke zero halogen, fire resistance, flame-retardant is our advantage, we have National Patent Certificate on it.
We have CCC and ISO9001 certificate, we can accept ODM, OEM and also can accept personal customized.
Rated voltage: 450 / 750V
The working temperature: ordinary type does not exceed 70 ℃, flame retardant does not exceed 105 ℃.
Conductor: single strand copper wire or stranded oxygen-free copper wire
This product is suitable for the control monitoring circuit of AC rated voltage U0/U of 450/750V and below and the connecting line of electrical instrument in protection circuit and power distribution device. It has good shielding effect and anti-interference effect.
Product standard:GB/T 9330-2008.
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012.
The type and specifications of cable are shown in the table below.
Type | Name | Section Area(mm2) | No. of Core |
KVV-32 | Control cable of copper conductor, PVC insulated, PVC sheathed, and fine round steel wire armoring | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
10 | 2c to 14 core | ||
KVVR-32 | The control flexible cable of Copper conductor, PVC insulated, PVC sheathed, and fine round steel wire armoring | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
10 | 2c to 14 core | ||
KYJV-32 | Control cable of copper conductor, XLPE insulated, PVC sheathed, and fine round steel wire armoring | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
10 | 2c to 14 core | ||
KYJVR-32 | The control flexible cable of Copper conductor, XLPE insulated, PVC sheathed, and fine round steel wire armoring | 0.75, 1.0, 1.5, 2.5,4,6 | 2c to 37 core |
10 | 2c to 14 core | ||
control cable are suitable for the wiring of electrical controlling equipments and instrument,monitoring and controlling return circuit,electrical protection and measurement in power distribution unit under the
circumstance that the rated voltage is up to 450/750V AC. selection of high quality Control Cables includes flexible control cables and flexible automation cables.
These cables are supplied to a variety of industries and applications, including robotics, manufacturing, construction, power and distribution, and more. They are common in both commercial and industrial markets.
Copper core PVC insulated electric cable is a fine and ideal cable with conductor of plain annealed copper wires,solid or stranded.These cables are used for general purpose,as building wire for power, lighting and control wire to electrical appliances,suitable for use in conduit and for fixed,protected installation. The cable can be of flame ratardance,fire resistance and other property.
a.The temperature should not be lower than 0 °C when the cable laying.
b.The long-term allowable operating temperature of PVC insulated cable conductors is 70 °C, and the maximum operating temperature of cable conductors is 160 °C when short-circuited (maximum duration does not exceed 5 seconds); the long-term allowable operating temperature of XLPE insulated cable conductors is 90 °C, short-circuit (The maximum duration does not exceed 5S) The maximum operating temperature of the cable conductor is 250 ° C;
c.The allowable bending radius of the cable: the cable without armor layer shall be not less than 6 times the outer diameter of the cable; the cable with armored or copper tape shielding structure shall be not less than 12 times the outer diameter of the cable; and the cable with shielded, it should be no less than 6 times the outer diameter of the cable.
Cables with Low smoke zero halogen, fire resistance, flame-retardant is our advantage, we have National Patent Certificate on it.
We have CCC and ISO9001 certificate, we can accept ODM, OEM and also can accept personal customized.
