Low Voltage 70mm 50mm 95mm 35mm 25mm 10mm 6mm 2.5mm 1.5mm 4mm 3 Core Fire Resistance Flame Retardant Copper Power Cable XLPE Armoured Cable Price

0.6/1KV Copper conductor electrical power cable with PVC insulation, FR-PVC or PE outer sheath, STA steel tape or SWA steel wire armoured or non armoured Fire Resistant power cable/kable
Availability:
  • ZR-YJV, ZR-YJV22, ZR-YJV32, ZR-YJV23
  • XITE
  • 8544492100
  • Copper
  • 600/1000V
  • PVC or XLPE
  • ZR-PVC, FR-PVC
  • SWA ,STA or non-armored
  • Flame Retardant, Antiflaming, Fire resistance, LSZH

Low Voltage 70mm 50mm 95mm 35mm 25mm 10mm 6mm 2.5mm 1.5mm 4mm 3 Core Fire Resistance Flame  Retardant Copper Power Cable XLPE Armoured Cable Price
1.5 mm fire rated cable-XITEfire resistant single core cables-XITE fire resistant hdmi cable-XITE

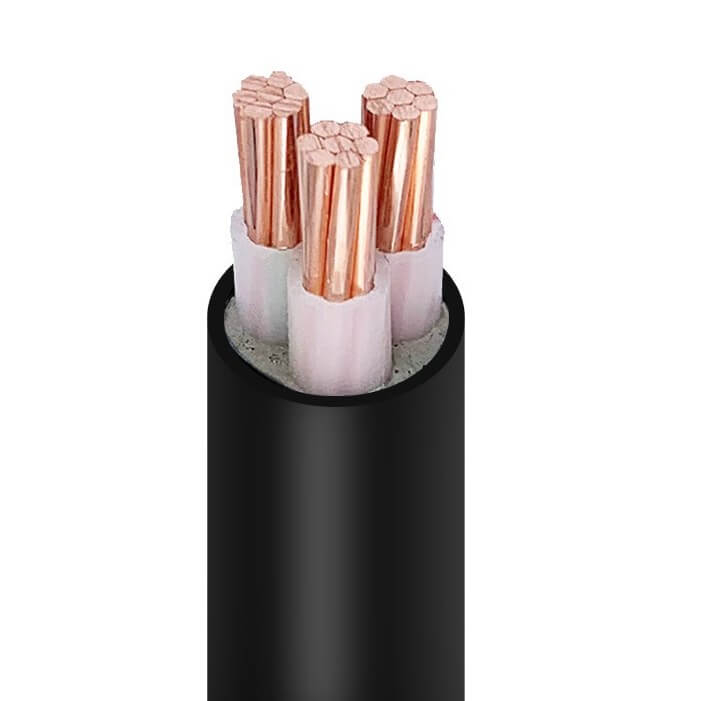

fire resistant flexible cable Introduction:

Type:ZR-YJV, ZR-YJV22, ZR-YJV32, ZR-YJV23

Core number: 3 core

Production Range : 1.5mm2, 2.5mm2, 4mm2, 6mm, 10mm2,16mm2, 25 mm2 , 35 mm2 , 50 mm2 , 70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 , 240 mm2 300 mm2

Related Voltage: 0.6/1kV

NO.of cores×section (mm²) Permissible   A mpacity                                                              (A) Reference overall   diameter of cable(mm) Reference   weight of cable(kg/km)
YJV YJV22

Cu Cu
Cu
In air In ground In air In ground Unarmoured Armoured YJV YJV22
3x1.5

21 26
13.3
268
3x2.5 28 37 28 34 11 14.2 171 318
3x4 37 48 37 45 12 15.2 225 379
3x6 47 61 46 57 13.1 16.3 296 463
3x10 64 82 63 77 15.3 18.6 440 628
3x16 85 107 83 100 17.5 20.7 638 851
3x25 115 138 112 131 21 24.2 954 1209
3x35 140 165 137 158 23.1 26.4 1266 1546
3x50 168 198 163 187 23.4 26.8 1614 1908
3x70 213 242 211 233 27.4 32 2246 2874
3x95 263 290 255 277 30.6 35.4 2975 3685
3x120 307 330 298 317 34 38.8 3776 4560
3x150 357 371 348 358 38.6 43.4 4682 5570
3x185 415 418 403 403 43.3 48.5 5802 6837
3x240 498 485 480 468 48.1 53.5 7437 8606
3x300 575 548 549 531 52.2 57.6 9313 10577

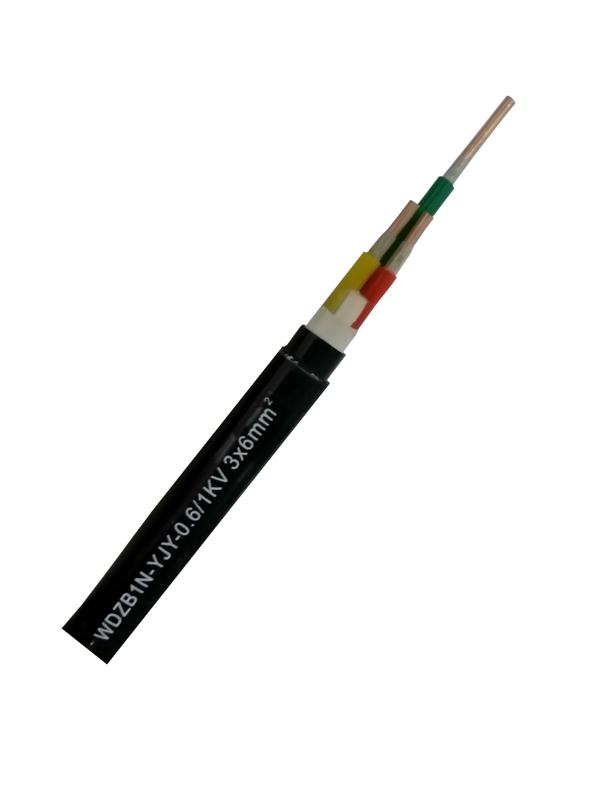

fire resistant low smoke cables Application:

This product is suitable for power transmission and distribution under AC rated voltage 0.6/1kv and working frequency 50Hz lines.


Low Voltage power cable is used to transmit and distribute power in power transmission and distribution system of 1kV. It is generally applied to the fields including power, mines, construction,  metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.

fire resistant power cable advantages:

Please note that the above these cables could make to Antiflaming power cable, Fire resistance power cable, LSZH power cable in rated voltage 0.6/1 KV, PVC or XLPE insulated, PVC outer sheath.

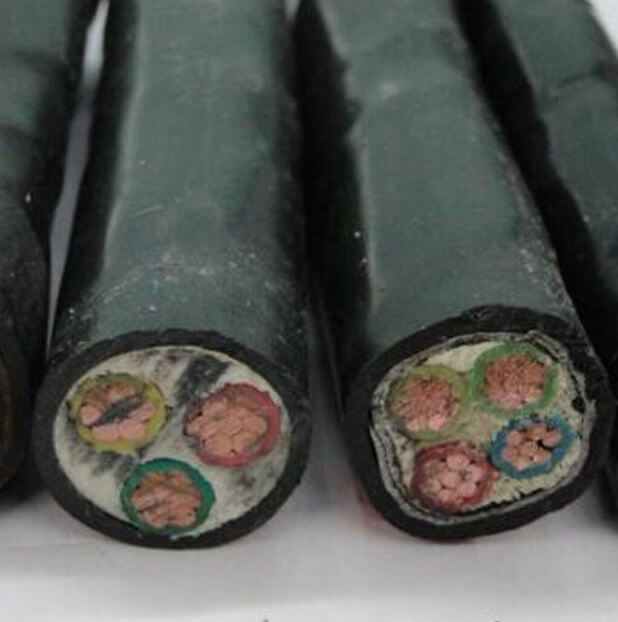

The feature of the Fire resistance power cable: This cable can not only transmit power under normal working conditions, but also when the fire or the combustion happens, can still maintain a certain time of normal operation . It is suitable for nuclear power plant, subway, tunnel, high-rise building and other places related to fire safety and fire rescue


Flame retardant grade: ZC, ZB, ZA (IA)

Armored cable with steel tape to enhance the mechanical properties of the cable, the cable can withstand external mechanical pressure.

steel tape armor/steel foil armoured,steel wire armoured/steel wire armoring/SWA.


Steel tape armored cable models: VV22, VV23, VLV22, VLV23, YJV22, YJV23, YJLV22, YJLV23,ZR-VV22, NH-VV22,WDZ-YJV22, WDZ-YJV23,WDZ-YJY22

Armoured cables are often referred to as steel wire armoured cables, SWA cable, mains power cable, single core power cable, and multi-core booklet armoured cable.



Please note that the above these cables could make to Antiflaming power cable, Fire resistance power cable, LSZH power cable in rated voltage 0.6/1 KV, PVC or XLPE insulated, PVC outer sheath.


Cables with Low smoke zero halogen, fire resistance, flame-retardant is our advantage, we have National Patent Certificate on it.

We have CCC and ISO9001 certificate, we can accept ODM, OEM and also can accept personal customized.
