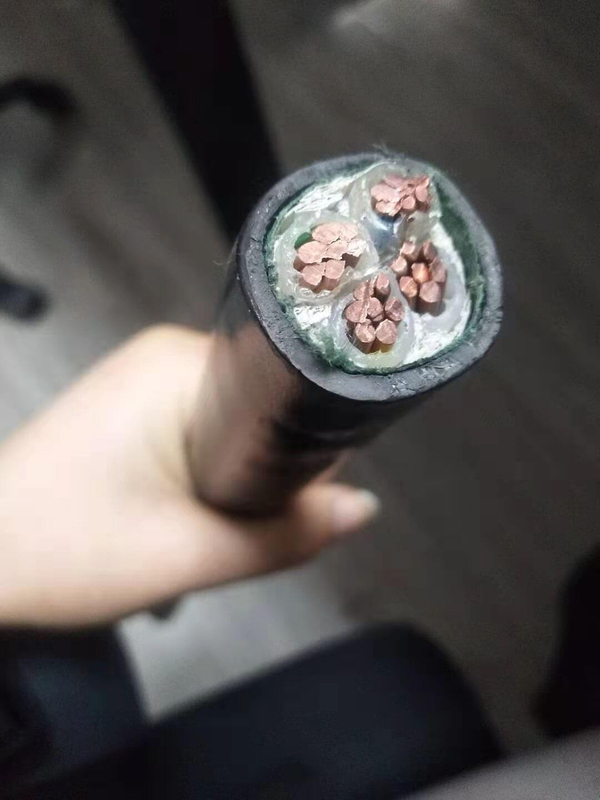

0.6/1KV 4 Core 16mm2 Copper XLPE Insulated Underground PVC Sheathed 16 sq mm SWA STA Armoured Power Cable

Copper/Aluminum conductor electrical power cable with XLPE or PVC insulation, PVC or PE outer sheath, STA steel tape armored or SWA steel wire armoured low voltage underground power cable/kable
Availability:
0.6/1KV 4 Core 16mm2 Copper XLPE Insulated Underground PVC Sheathed 16 sq mm SWA STA Armoured Power Cable
0.6/1KV 4 Core 16mm2 Copper XLPE Insulated Underground PVC Sheathed 16 sq mm SWA STA Armoured Power Cable
0.6/1KV 4 Core 16mm2 Copper XLPE Insulated Underground PVC Sheathed 16 sq mm SWA STA Armoured Power Cable
0.6/1KV 4 Core 16mm2 Copper XLPE Insulated Underground PVC Sheathed 16 sq mm SWA STA Armoured Power Cable
0.6/1KV 4 Core 16mm2 Copper XLPE Insulated Underground PVC Sheathed 16 sq mm SWA STA Armoured Power Cable
0.6/1KV 4 Core 16mm2 Copper XLPE Insulated Underground PVC Sheathed 16 sq mm SWA STA Armoured Power Cable
  • YJV22,YJV32, VV22,VV32 ,YJLV22, YJLV32

  • XITE

  • 8544492100

  • Copper or Aluminum

  • 600/1000V

  • XLPE or PVC

  • PVC or PE or LSZH

  • SWA ,STA armoured

  • Flame Retardant, Antiflaming, Fire resistance, LSZH

0.6/1KV 4 Core 16mm2 Copper XLPE Insulated Underground PVC Sheathed 16 sq mm SWA  STA Armoured Power Cable

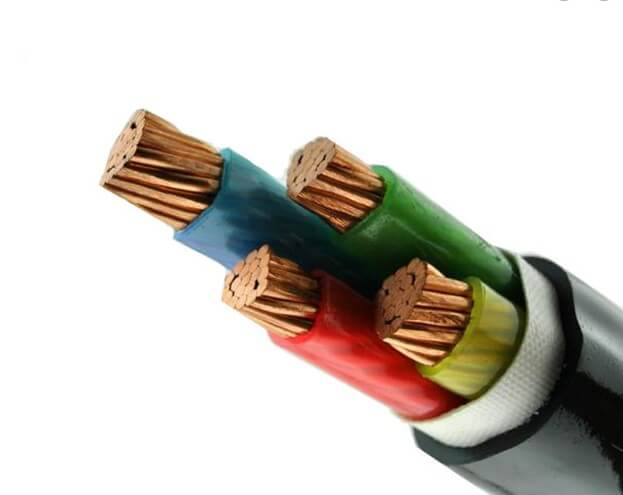

16mm x 4 core armoured cable-XITE CABLE 4 core 35 sq mm copper armoured cable price-XITE

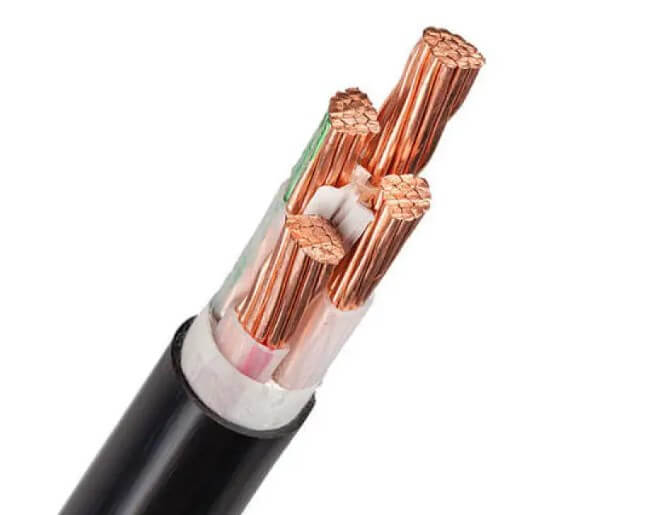

4 core low voltage cable Introduction:

Power cable: Copper or Aluminum conductor electric power cable with XLPE or PVC insulation, PVC or PE outer sheath, STA steel tape armoured electrical power cable/kable

Type:YJV22,YJV23,YJV32, YJLV22,YJLV32

Core number: 4 core, 3+1 core , 3 core and 1 core

Production Range : 1.5mm2, 2.5mm2, 4mm2, 6mm, 10mm2,16mm2, 25 mm2 , 35 mm2 , 50 mm2 , 70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 , 240 mm2 300 mm2

Related Voltage: 0.6/1kV

NO.of cores×section(mm²) Normal insulation   thickness     (mm) Normal thickness of   oversheath Approximate overall   diameter of cable(mm) Approximate weight   of cable                                                                                              (kg/km)
Cu AL

Unarmoured Armoured Unarmoured Armoured YJV YJV22 YJLV YJLV22
4×4 0.7 1.8 1.8 12.6 18.1 268 430 / /
4×6 0.7 1.8 1.8 13.8 17 356 545 / /
4×10 0.7 1.8 1.8 16.9 19.1 557 752 390 517
4×16 0.7 1.8 1.8 19.5 21.6 819 1020 416 663
4×25 0.9 1.8 1.8 23.5 25.7 1241 1502 593 902
4×35 0.9 1.8 1.8 26.7 28.7 1631 1957 776 1096
4×50 1 1.8 1.9 28 32.6 2080 2812 961 1770
4×70 1.1 2 2.1 33.2 37.5 2952 3796 1302 2222
4×95 1.1 2.1 2.3 38 42.6 3970 4962 1693 2757
4×120 1.2 2.3 2.4 40.9 46.4 4894 5913 2077 3363
4×150 1.4 2.4 2.6 46 51.3 5980 7170 2852 3878
4×185 1.6 2.6 2.7 52.5 57.8 7442 8802 3173 4618
4×240 1.7 2.8 3 59.4 64.6 9764 11289 4032 5782
4×300 1.8 3 3.1 66.2 71.6 12122 13856 4924 6735
4×400 2 3.3 3.4 73.8 80.3 15624 18407 6272 9313
4×500 2.2 3.5 3.7 89.3 96 19877 23264 7667 11062
4×630 2.4 3.8 4 99.6 106.3 25124 28895 9514 13293

16mm 4 core armoured cable price Application:

This product is suitable for power transmission and distribution under AC rated voltage 0.6/1kv and working frequency 50Hz lines.


Low Voltage power cable is used to transmit and distribute power in power transmission and distribution system of 1kV. It is generally applied to the fields including power, mines, construction,  metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.

NO.of cores×section   (mm²) Permissible   A mpacity                                                              (A) Reference overall   diameter of cable(mm) Reference   weight of cable(kg/km)
YJV YJV22

Cu Cu
Cu
In air In ground In air In ground Unarmoured Armoured YJV YJV22
3x2.5+1x2.5 28 36 28 35 11.6 14.8 212 357
3x4+1x2.5 37 47 37 45 12.7 15.9 277 434
3x6+1x4 47 60 47 57 13.9 17.1 363 534
3x10+1x6 64 81 64 78 16.1 19.3 527 724
3x16+1x10 85 106 85 102 18.6 21.8 766 992
3x25+1x16 113 137 113 132 22.2 25.4 1140 1409
3x35+1x16 139 164 139 158 24.6 27.8 1475 1772
3x50+1x25 173 198 172 192 27.7 31.2 1951 2299
3x70+1x35 222 246 233 239 31.9 36.7 2662 3406
3x95+1x50 271 293 273 286 36.2 40.8 3578 4398
3x120+1x70 318 334 319 325 39.9 44.7 4567 5487
3x150+1x70 370 375 369 365 45 50 5514 6570
3x185+1x95 427 422 421 412 49.4 54.4 6850 8003
3x240+1x120 507 492 503 480 54.9 60.1 8741 10045
3x300+1x150 599 560 590 546 62.9 68.3 11052 12570

4 core 16mm armored cable advantages:

Low voltage power cable have higher long-term working temperature and greater current rating, and under the condition of the same environment, XLPE cable may be reduced size (normal cross section) 1 or 2 class in comparison with PVC cable. These are not only improving the quality and properties of products, but also reduce cables' production cost.


Armoured Cable with steel tape to enhance the mechanical properties of the cable, the cable can withstand external mechanical pressure.


steel tape armor/steel foil armoured,steel wire armoured/steel wire armoring/SWA.


Steel tape armored cable models: VV22, VV23, VLV22, VLV23, YJV22, YJV23, YJLV22, YJLV23,ZR-VV22, NH-VV22,WDZ-YJV22, WDZ-YJV23,WDZ-YJY22

16mm armored cable Using Feature:

1. Cable conductor allowed working temperature doesn't exceed 70 ºC in a long term

2. When the short circuit happened (the longest duration is no more than 5 seconds), the highest temperature of the cable conductor does not exceed 160 ºC.

3. The environment temperature should not below 0 ºC when cable laying, To warm up first when the temperature lower than 0 ºC .

4. The minimum bending radius of the multicore-non armoured cable shall not be less than 12 times of the outer diameter of cables, and the minimum bending radius of the mutilcore-armored cables shall not be less than 15 times of the outer diameter of cables. The minimum bending radius of the single core armoured cable shall not be less than 15 times of the outer diameter of cable, and the minimum bending radius of the single core -non armoured cable shall not be less than 20 times of the outer diameter of cable

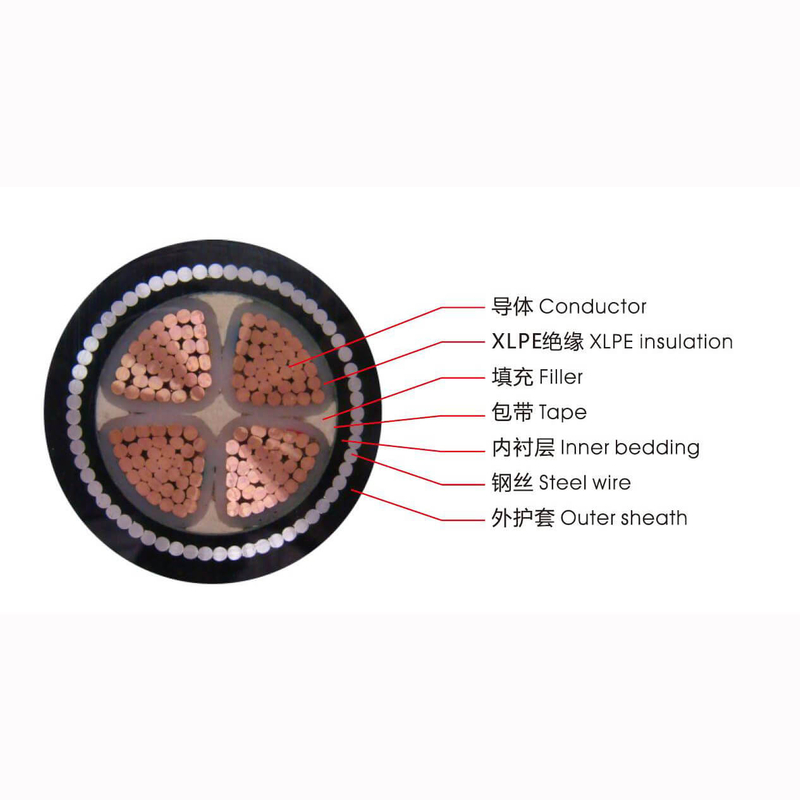

5. Structure parameter of rated voltage 0.6/1KV XLPE insulated power cable


Please note that the above these cables could make to Antiflaming power cable, Fire resistance power cable, LSZH power cable in rated voltage 0.6/1 KV, PVC or XLPE insulated, PVC outer sheath.


Cables with Low smoke zero halogen, fire resistance, flame-retardant is our advantage, we have National Patent Certificate on it.

We have CCC and ISO9001 certificate, we can accept ODM, OEM and also can accept personal customized.
