BV,BYJ,BVR,BYJR,H07V-U
XITE
8544492100
Copper
300/300v, 450/750V
XLPE or PVC
PVC or PE or FR or LSZH
Unarmored
Flame Retardant, Antiflaming, Fire resistance, LSZH
 | |
Plastic insulated wire, flexible wire and shielded insulated wire

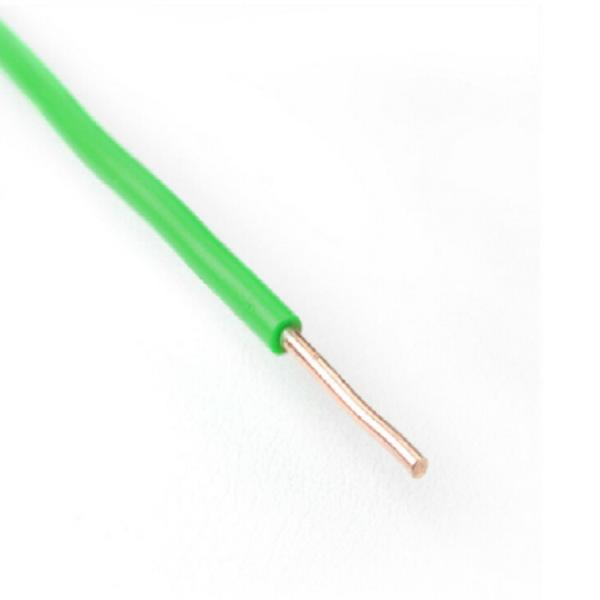

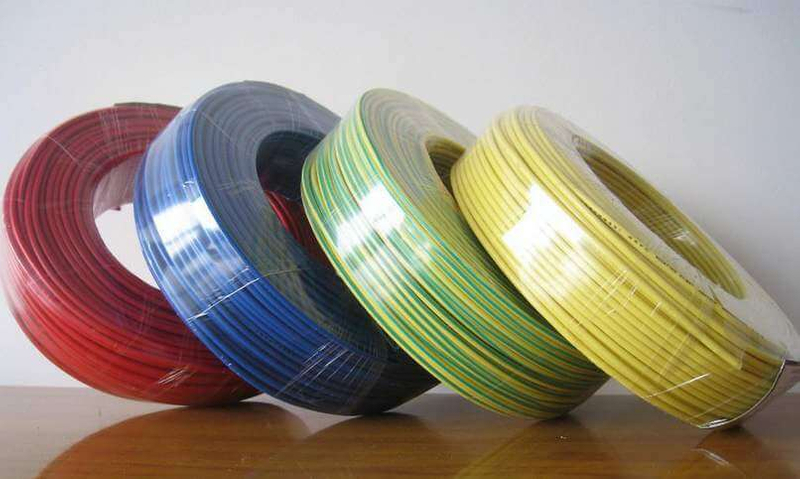

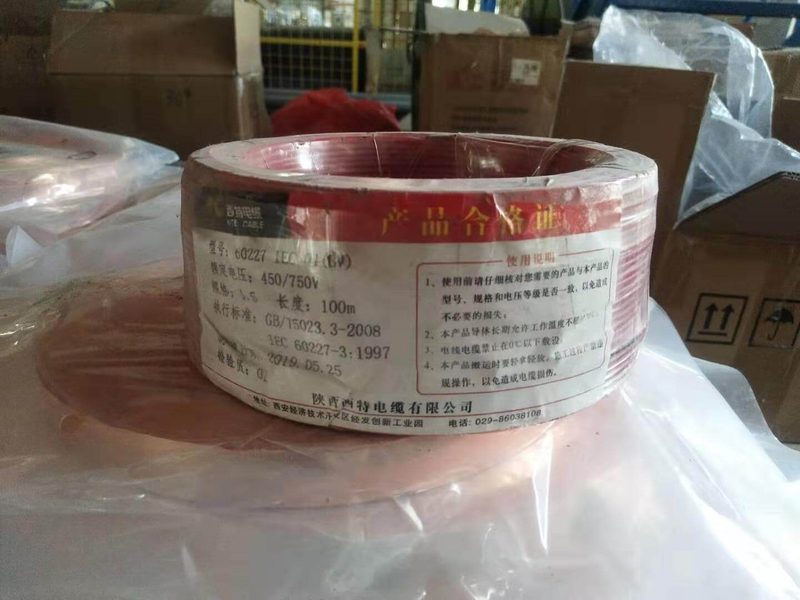

1.Plastic insulated wire and cable for fixed wiring
This product is suitable for fixed wiring of power equipment with AC voltage of 450/750V and below.
Production standard: GB/T5023.3-2008, JB/T8734.5-2008
| Type | Name | Core No. | Nominal cross sectional area(mm2) |
| BV | copper conductor PVC insulated wire | 1 | 0.75-240 |
| BVR | copper conductor PVC insulated flexible wire | 1 | 0.75-240 |
| BYJ | copper conductor XLPE insulated wire | 1 | 0.75-240 |
| BYJR | copper conductor XLPE insulated flexible wire | 1 | 0.75-185 |
| BVV | copper conductor PVC insulated and sheathed round cable | 1 | 0.75-185 |
| BVVB | copper conductor PVC insulated and sheathed round cable | 2,3 | 0.75-6 |
| BYJV | copper conductor XLPE insulated and sheathed round cable | 1 | 0.75-185 |
| BYJVR | copper conductor XLPE insulated and sheathed round flexible cable | 1 | 0.75-185 |
The PVC insulted wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750v(U0/U).Part of the plastic insulted wires are used at the equipment with AC rated voltage up to 300/300v.
a.The long-term allowable operating temperature of PVC insulated cable conductors is 70 °C, and the maximum operating temperature of cable conductors is 160 °C when short-circuited (maximum duration does not exceed 5 seconds); the long-term allowable operating temperature of XLPE insulated cable conductors is 90 °C, short-circuit (The maximum duration does not exceed 5S) The maximum operating temperature of the cable conductor is 250 ° C;
b.The long-term allowable working temperature of the cable conductor is 105 °C;
c.Allowable bending radius of the cable: the outer diameter is less than 25mm, the bending radius is not less than 4D; the outer diameter is 25mm and above, and the bending radius is not less than 6D.
We can produce all kinds of wire and cable with special requirements such as flame retardant, fireproof, low smoke and zero halogen.
| |
