Wholesale Price PVC Insulated Copper Wire Braid Shielded SWA STA Armored Multicore 0.5mm 0.75mm 1.5mm 1mm 2.5mm Instrumentation Electric Wire Cables

The instrument cable with copper conductor , polyethylene insulation, copper wire braided individual/overall shielding, PVC inner jacket, steel tape or steel wire armoured, PVC outer sheath
Availability:
  • DJYPV22,DJYVP22,DJYPVP22,DJYP1V22,DJYVP1-22,DJYP1VP1-22,DJYP2V-22,DJYVP2-22,DJYP2VP2-22,DJYP3V22,DJYVP3-22
  • XITE
  • 8544492100
  • Annealed copper or tinned copper
  • 300/500V
  • XLPE or PVC or PE
  • PVC or FR or LSZH
  • SWA or STA armored
  • Flame Retardant, Antiflaming, Fire resistance, LSZH

Wholesale Price PVC Insulated Copper Wire Braid Shielded SWA STA Armored Multicore 0.5mm 0.75mm 1.5mm 1mm 2.5mm Instrumentation Electric Wire Cables

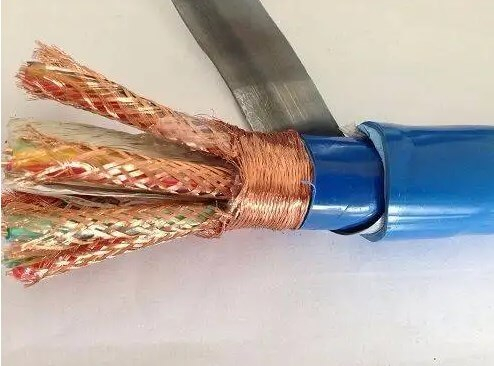

swa armoured instrumentation cable-XITE

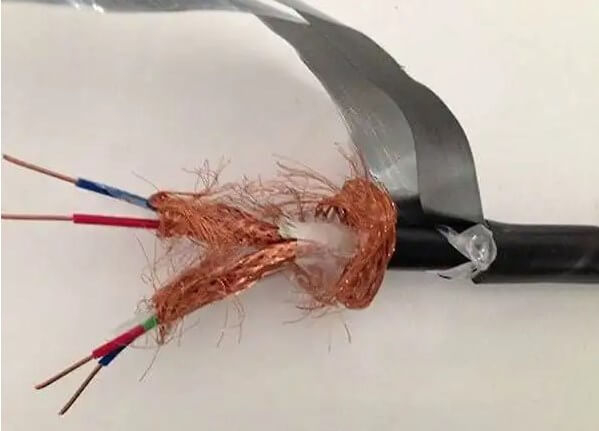

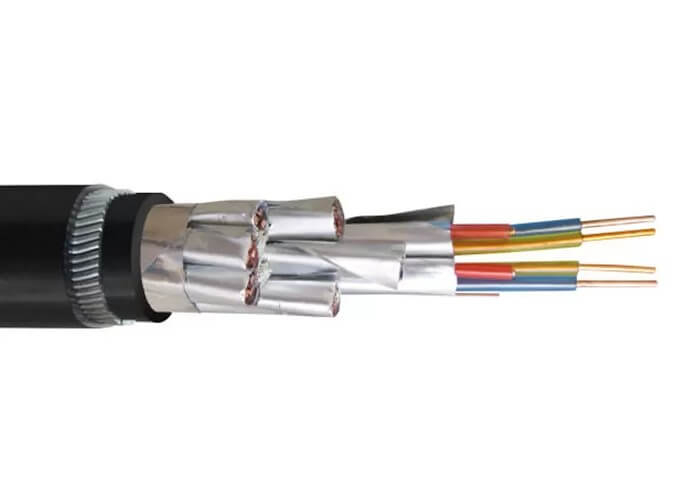

shielded armored instrument cable-XITE


swa armoured instrumentation cable Introduction:

Type: DJYPV22,DJYVP22,DJYPVP22,DJYP1V22,DJYVP1-22,DJYP1VP1-22,DJYP2V-22,DJYVP2-22,DJYP2VP2-22,DJYP3V22,DJYVP3-22,DJYP3VP3-22,DJYJPV22,DJYJVP22,DJYJPVP22,DJYJP1V22,DJYJVP1-22,DJYJP1VP1-22,DJYJP2V22,DJYJVP2-22,DJYJP2VP2-22,DJYJP3V22,DJYJVP3-22,DJYJP3VP3-22,DJVPV22,DJVVP22,DJVPVP22,

DJVP1V22,DJVVP1-22,DJVP1VP1-22,DJVVP2-22,DJVP2VP2-22,DJVP3V22,DJVVP3-22DJVP3VP3-22

DJYPV32,DJYVP32,DJYPVP32,DJYP1V32,DJYVP1-32,DJYP1VP1-32,DJYP2V-32,DJYVP2-32,DJYP2VP2-32,DJYP3V-32,DJYVP3-32,DJYP3VP3-32,DJYJPV32,DJYJVP32,DJYJPVP32,DJYJP1V32,DJYJVP1-32,DJYJP1VP1-32,DJYJP2V-32,DJYJVP2-32,DJYJP2VP2-32,DJYJP3V32,DJYJVP3-32,DJYJP3VP3-32,DJVPV32,DJVVP32,DJVPVP32,DJVP1V32,DJVVP1-32,DJVP1VP1-32,DJVVP2-32,DJVP2VP2-32,DJVP3V32,DJVVP3-32,DJVP3VP3-32

Nominal Size: 0.5mm2,0.75mm2, 1.0mm2, 1.5mm2, 2.5mm2

Core: 2 core, 3 core

Pair: 1 pair, 2 pairs,3 pairs ,4 pairs ,5 pairs ,7 pairs ,8 pairs ,10 pairs ,12 pairs ,14 pairs,16 pairs ,19 pairs ,24 pairs ,27 pairs ,30 pairs, 37 pairs

Conductor: Annealed copper or tinned copper

Insulation: PE,XLPE,PVC

Jacket: PVC,LSZH,FR,PE

standards:TICW/06-2009 "computer and instruments cables"

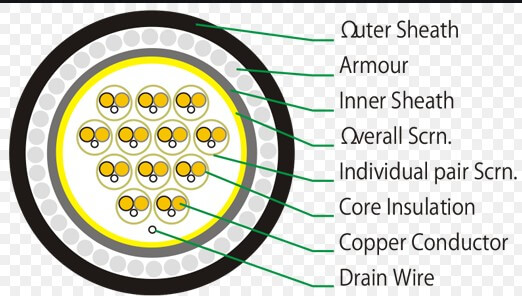

instrumentation screened cables including collectively screened (CAM) and those individually screened and collectively screened (ICAM). These can be Polyethylene (PE), cross-linked Polyethylene (XLPE), Polyvinyl Chloride (PVC). They also generally have a PVC outer sheath or low smoke zero halogen(LSZH) sheathing for areas where smoke and acid gas emission would cause a serious problem in a fire situation.  BS5308 instrumentation cables, are also available armored with steel wire armour or steel tape, offering protection against mechanical stresses.

MODEL   No. Description
Both Armoured and shielding
DJYPV22 The instrument cable with copper   conductor , polyethylene insulation, copper wire braided individual   shielding, PVC inner jacket, steel tape armoured, PVC outer sheath
DJYVP22 The instrument cable with copper   conductor, polyethylene insulation, copper wire braided general shielding ,   PVC inner jacket, steel tape armoured, PVC outer sheath
DJYPVP22 The instrument cable with copper   conductor, polyethylene insulation, both copper wire braided individual   shielding and copper wire braided general shielding, PVC inner jacket, steel   tape armoured , PVC outer sheath
DJYP1V22 The instrument cable with copper   conductor, polyethylene insulation, composite copper - plastic tape   individual shielding, PVC inner jacket, steel tape armoured, PVC outer   sheath
DJYVP1-22 The instrument cable with copper   conductor, polyethylene insulation, composite copper - plastic tape general   shielding, steel strip armoured, PVC outer sheath
DJYP1VP1-22 The instrument cable with copper   conductor, polyethylene insulation, both composite copper- plastic tape   individual shielding and composite copper - plastic tape general shielding,   steel tape armoured, PVC outer sheath
DJYP2V22 The instrument cable with copper   conductor, polyethylene insulation, copper strip individual shielding, PVC   inner jacket ,steel tape armoured, PVC outer sheath
DJYVP2-22 The instrument cable with copper   conductor, polyethylene insulation, copper strip braided general shielding,   PVC inner jacket, steel tape armoured, PVC outer sheath
DJYP2VP2-22 The instrument cable with copper   conductor, polyethylene insulation, both copper strip individual shielding   and copper strip general shielding, PVC inner jacket, steel tape armoured,   PVC outer sheath
DJYP3V22 The instrument cable with copper   conductor , polyethylene insulation, composite aluminum- plastic tape   individual shielding , PVC inner jacket, steel tape armoured, PVC outer   sheath
DJYVP3-22 The instrument cable with copper   conductor , polyethylene insulation, composite aluminum - plastic tape   general shielding, PVC inner jacket, steel tape armoured, PVC outer sheath
DJYP3VP3-22 The instrument cable with copper   conductor, polyethylene insulation, both composite aluminum - plastic tape   individual shielding and composite aluminum- plastic tape general shielding ,   PVC inner jacket, steel tape armoured, PVC outer sheath
DJYJPV22 The instrument cable with copper   conductor, XLPE insulation, copper wire braided individual shielding, PVC   inner jacket, steel tape armoured, PVC outer sheath
DJYJVP22 The instrument cable with copper   conductor, XLPE insualtion, copper wire braided general shielding, PVC inner   jacket, steel tape armoured, PVC outer sheath
DJYJPVP22 The instrument cable with copper   conductor, XLPE insulation, both copper wire individual shielding and copper   wire braided general shielding, PVC inner jacket, steel tape armoured, PVC   outer sheath
DJYJP1V22 The instrument cable with copper   conductor, XLPE insulation, composite copper - plastic tape individual   shielding, PVC inner jacket, steel tape armoured, PVC outer sheath
DJYJVP1-22 The instrument cable with copper   conductor, XLPE insulation, composite copper -plastic tape general shielding,   PVC inner jacket, steel tape armoured, PVC outer sheath
DJYJP1VP1-22 The instrument cable with copper   conductor, XLPE insulation, both composite copper-plastic tape individual   shielding and composite copper - plastic tape general shielding, PVC inner   jacket , steel tape armoured, PVC outer sheath
DJYJP2V22 The instrument cable with copper   conductor, XLPE insulation, copper strip individual shielding , PVC inner   jacket, steel tape armoured, PVC outer sheath
DJYJVP2-22 The instrument cable with copper   conductor, XLPE insulation, copper strip general shielding, PVC inner jacket,   steel tape armoured, PVC outer sheath
DJYJP2VP2-22 The instrument cable with copper   conductor, XLPE insulation, both copper strip individual shielding and copper   strip general shielding, PVC inner jacket, steel tape armoured, PVC outer   sheath
DJYJP3V22 The instrument cable with copper   conductor, XLPE insulation, composite aluminum-plastic tape individual   shielding, PVC inner jacket, steel tape armoured, PVC outer sheath
DJYJVP3-22 The instrument cable with copper   conductor, XLPE insulation, composite aluminum - plastic tape general   shielding, PVC inner jacket, steel tape armoured, PVC outer sheath
DJYJP3VP3-22 The instrument cable with copper   conductor, XLPE insulation, both aluminum - plastic tape individual shielding   and composite aluminum-plastic tape general shielding, PVC inner jacket,   steel tape armoured, PVC outer sheath
DJVPV22 The instrument cable with copper   conductor, PVC insulation, copper wire individual shielding, PVC inner   jacket, steel tape armoured, PVC outer sheath
DJVVP22 The instrument cable with copper   conductor, PVC insulation, copper wire braided general shielding, PVC inner   jacket, steel tape armoured, PVC outer sheath
DJVPVP22 The instrument cable with copper   conductor, PVC insulation, both copper wire braided individual shielding and   copper wire braided general shielding, PVC inner jacket, steel tape armoured,   PVC outer sheath
DJVP1V22 The instrument cable with copper   conductor, PVC insualtion, composite copper-plastic tape individual   shielding, PVC inner jacket, steel tape armoured, PVC outer sheath
DJVVP1-22 The instrument cable with copper   conductor, PVC insulation, composite copper - plastic tape general shielding,   PVC inner jacket, steel tape armoured, PVC outer sheath
DJVP1VP1-22 The instrument cable with copper   conductor, PVC insulation, both composite copper - plastic tape individual   shielding and composite copper - plastic tape general shielding, PVC inner   jacket, steel tape armoured , PVC outer sheath
DJVP2V22 The instrument cable with copper   conductor, PVC insulation, copper strip individual shielding, PVC inner   jacket, steel tape armoured, PVC outer sheath
DJVVP2-22 The instrument cable with copper   conductor, PVC insulation, copper strip general shielding, PVC inner jacket ,   steel tape armoured, PVC outer sheath
DJVP2VP2-22 The instrument cable with copper   conductor, PVC insulation, both copper strip individual shielding and copper   strip general shielding, PVC inner jacket, steel tape armoured, PVC outer   sheath
DJVP3V22 The instrument cable with copper   conductor, PVC insulation, composite aluminum-plastic tape individual   shielding, PVC inner jacket, steel tape armoured, PVC outer sheath
DJVVP3-22 The instrument cable with copper   conductor, PVC insulation, composite aluminum- plastic tape general   shielding, PVC inner jacket, steel tape armoured, PVC outer sheath
DJVP3VP3-22 The instrument cable with copper   conductor, PVC insulation, both composite aluminum-plastic tape individual   shielding and composite aluminum- plastic tape general shielding, PVC inner   jacket, steel tape armoured, PVC outer sheath

shielded armored instrument cable features

1, Cable laying temperature with PVC , polyethylene insulation cable should not below 0℃ . Besides the cable laying temperature with XLPE insulation should not below -15℃

2, Regarding to the cable with PVC , polyethylene insulation, their conductor allowed long term operating temperature is 70 ℃ .When a short circuit

happened(The maximum duration is less than 5 seconds), The conductor allowed maximum operating temperature should be 160℃

3 To the cable with XLPE insulation, the conductor allowed long term operating temperature is 90℃. When a short circuit happened (The maximum duration is less than 5 seconds), The conductor allowed maximum operating temperature should be 250℃

4、The allowable bending radius of the cable: the cable with unarmored, should not be less than 6 times of the outer diameter of the cable. Cable with armoured or copper tape shielding shall not be less than 12 times of the outer diameter of the cable. And the flexible cable with shielding layer shall not be less than 6 times of the outer diameter of the cable

Electrical Performance
Form A
TEST ITEM UNIT TECHNICAL INDEX
PE/XLPE  PVC
insulation insulation
insulation resistance (20℃) ≥ Between any wire and conductor MΩ·km 1000 25
Between   wire and the shielding 1 1


shielded armored instrument cable Application:

This product is suitable for power generation, metallurgy, petrochemical and other industrial and mining enterprises electronic instrument systems. Automatic control system of signal transmission and instruments detection,instrument connection with multi - pair shielding anti - interference cable; It is used as signal transmission and connection of checking appliances of distribution system, computer system and automatic system of power - generating metallurgy petroling chemistry.


1.Instrument cable minimizes noise and signal interference,delievery clean  signal in harsh environment and general manufacturing operations.


2.Instrument cable have a maximun counductor temperature at 90 °c  and a low temperature rating of -40 °c.


3.the cable jacket is resistent to sunlight ,moistureand vapour penetration.


4.Instrument cable is avaiable in individually shielded pairs or triads with an overall shield construction in 300v and 500v.


Instrument cable has a broad range of uses,particularly in the petrochemical ,pulp,paper and sawmill,and other process industries.


Instrument cable design for wet and dry locations ,it is resistent to mechanical damage and corrosive chenicals ,and it is often employed in raceways,direct burial and control applications .




Please note that the above these cables could make to Antiflaming power cable, Fire resistance power cable, LSZH power cable in rated voltage 0.6/1 KV, PVC or XLPE insulated, PVC outer sheath.


The feature of the Antiflaming power cable: This cable is hard to be on fire, when it happens, the extend  fire point just be limited to a certain range. It is applicable to power stations, subways, tunnels, high-rise buildings, large industrial and mining enterprises, oil fields, coal mines and other places with high density of cable laying.


The feature of the Fire resistance power cable: This cable can not only transmit power under normal working conditions, but also when the fire or the combustion happens, can still maintain a certain time of normal operation . It is suitable for nuclear power plant, subway, tunnel, high-rise building and other places related to fire safety and fire rescue.


The feature of the LSZH power cable: This cable not only has the flame retardant performance, but also has low smoke and harmless (less toxicity and corrosion), suitable for the cable flame retardant, smoke density, toxicity index and other places with special requirements, such as subway, tunnel, nuclear power plant.


Flame retardant grade: ZC, ZB, ZA (IA)
