DJYPVP,DJYP1VP1,DJYP2VP2,DJYP3VP3,DJYJPVP,DJYJP1VP1,DJYJP2VP2,DJYJP3VP3,DJVPVP,DJVP1VP1,DJVP2VP2,DJVP3VP3
XITE
8544492100
Annealed copper or tinned copper
300/500V
XLPE or PVC or PE
PVC or FR or LSZH
SWA or STA armored or non-armored
Flame Retardant, Antiflaming, Fire resistance, LSZH
|
|
Nominal Size: 0.5mm2,0.75mm2, 1.0mm2, 1.5mm2, 2.5mm2
Core: 2 core, 3 core
Pair: 1 pair, 2 pairs,3 pairs ,4 pairs ,5 pairs ,7 pairs ,8 pairs ,10 pairs ,12 pairs ,14 pairs,16 pairs ,19 pairs ,24 pairs ,27 pairs ,30 pairs, 37 pairs
Conductor: Annealed copper or tinned copper
Insulation: PE,XLPE,PVC
Jacket: PVC,LSZH,FR,PE
standards：TICW/06-2009 "computer and instruments cables"
instrumentation screened cables including collectively screened (CAM) and those individually screened and collectively screened (ICAM). These can be Polyethylene (PE), cross-linked Polyethylene (XLPE), Polyvinyl Chloride (PVC). They also generally have a PVC outer sheath or low smoke zero halogen(LSZH) sheathing for areas where smoke and acid gas emission would cause a serious problem in a fire situation. BS5308 instrumentation cables, are also available armored with steel wire armour or steel tape, offering protection against mechanical stresses.
| MODEL No. | Description |
| Both general shielding and individual shielding | |

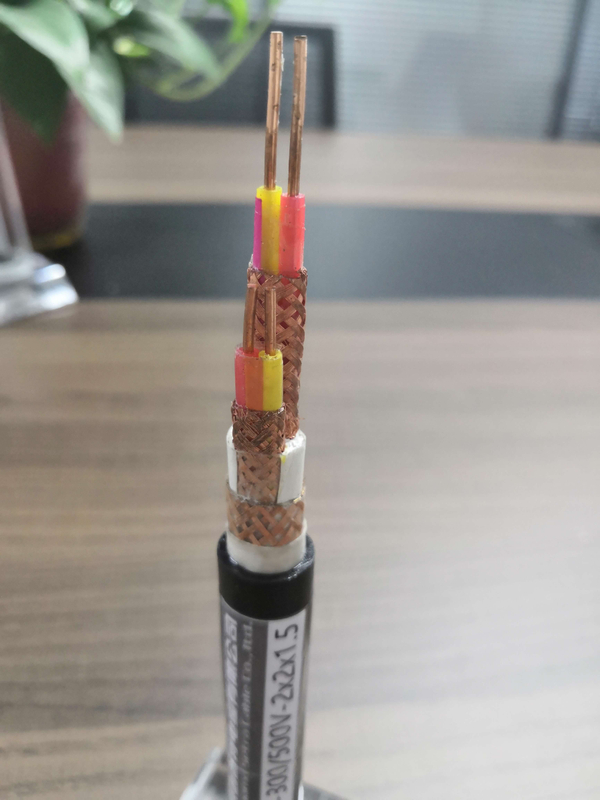

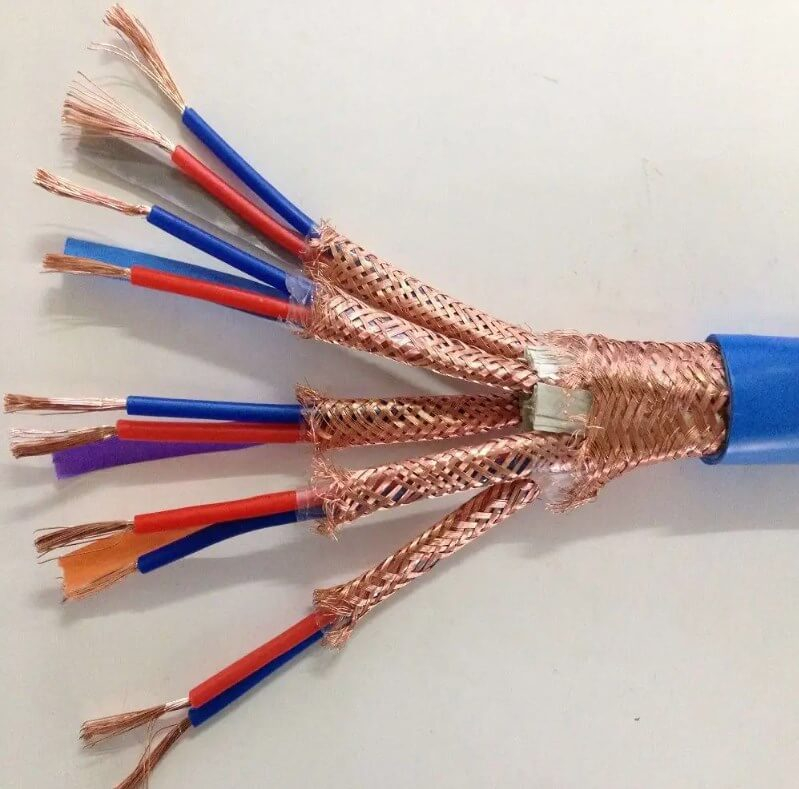

| DJYPVP | The instrument cable with copper conductor, polyethylene insulation, both copper wire braided individual shielding and copper wire braided general shielding, PVC outer sheath |

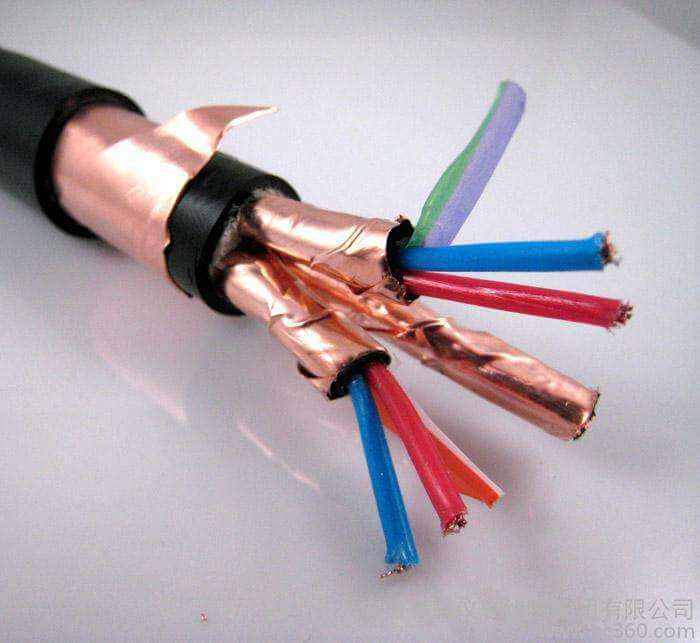

| DJYP1VP1 | The instrument cable with copper conductor, polyethylene insulation, both composite copper - plastic tape individual shielding and composite copper- plastic tape general shielding, PVC outer sheath |
| DJYP2VP2 | The instrument cable with copper conductor, polyethylene insulation, both copper strip braided individual shielding and copper strip braided general shielding, PVC outer sheath |
| DJYP3VP3 | The instrument cable with copper conductor, polyethylene insulation, both composite aluminum- plastic tape individual shielding and composite aluminum- plastic tape general shielding , PVC outer sheath |
| DJYJPVP | The instrument cable with copper conductor, XLPE insulation, both copper wire braided individual shielding and copper wire braided general shielding, PVC outer sheath |
| DJYJP1VP1 | The instrument cable with copper conductor, XLPE insulation, both composite copper- plastic individual shielding and composite copper -plastic tape general shielding, PVC outer sheath |
| DJYJP2VP2 | The instrument cable with copper conductor, XLPE insulation, both copper strip braided individual shielding and copper strip braided general shielding, PVC outer sheath |
| DJYJP3VP3 | The instrument cable with copper conductor , XLPE insulation, both composite aluminum - plastic tape individual shielding and composite aluminum - plastic tape general shielding, PVC outer sheath |
| DJVPVP | The instrument cable with copper conductor , PVC insulation, both copper wire braided individual shielding and copper wire braided general shielding, PVC outer sheath |
| DJVP1VP1 | The instrument cable with copper conductor , PVC insulation, both composite copper-plastic tape individual shielding and composite copper - plastic tape general shielding, PVC outer sheath |
| DJVP2VP2 | The instrument cable with copper conductor, PVC insulation, both copper strip braided individual shielding and copper strip braided general shielding, PVC outer sheath |
| DJVP3VP3 | The instrument cable with copper conductor, PVC insulation, both aluminum- plastic tape individual shielding and composite aluminum - plastic tape general shielding, PVC outer sheath |
1, Cable laying temperature with PVC , polyethylene insulation cable should not below 0℃ . Besides the cable laying temperature with XLPE insulation should not below -15℃
2, Regarding to the cable with PVC , polyethylene insulation, their conductor allowed long term operating temperature is 70 ℃ .When a short circuit
happened(The maximum duration is less than 5 seconds), The conductor allowed maximum operating temperature should be 160℃
3 To the cable with XLPE insulation, the conductor allowed long term operating temperature is 90℃. When a short circuit happened (The maximum duration is less than 5 seconds), The conductor allowed maximum operating temperature should be 250℃
4、The allowable bending radius of the cable: the cable with unarmored, should not be less than 6 times of the outer diameter of the cable. Cable with armoured or copper tape shielding shall not be less than 12 times of the outer diameter of the cable. And the flexible cable with shielding layer shall not be less than 6 times of the outer diameter of the cable
| Electrical Performance | ||||
| Form A | ||||
| TEST ITEM | UNIT | TECHNICAL INDEX | ||
| PE/XLPE | PVC | |||
| insulation | insulation | |||
| insulation resistance (20℃) ≥ | Between any wire and conductor | MΩ·km | 1000 | 25 |
| Between wire and the shielding | 1 | 1 | ||
This product is suitable for power generation, metallurgy, petrochemical and other industrial and mining enterprises electronic instrument systems. Automatic control system of signal transmission and instruments detection, instrument connection with multi - pair shielding anti - interference cable
We supply a wide range of instrumentation cables suitable for an even wider range of applications across industries where manufacturing and processing operations are controlled and measured by electronic means.
The armoured LSOH versions (Part 1 Type 2) are generally used when the risk of mechanical damage is increased. The galvanised steel wire armour provides excellent protection. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, the LSOH sheath can reduce toxic smoke and fume emission.
Cables with Low smoke zero halogen, fire resistance, flame-retardant is our advantage, we have National Patent Certificate on it.
We have CCC and ISO9001 certificate, we can accept ODM, OEM and also can accept personal customized.
|
|
