Availability: | |
---|---|

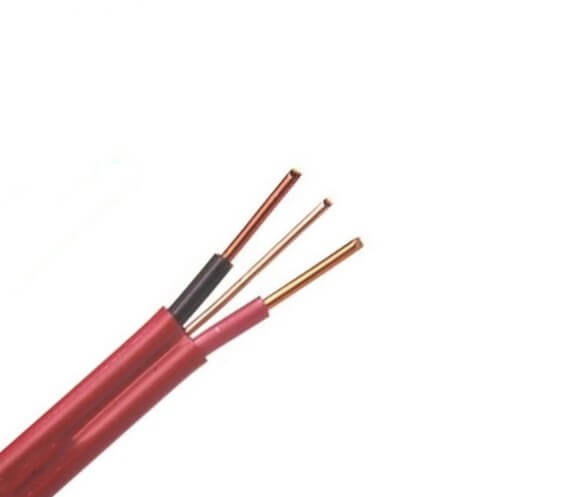

6242Y
XITE
8544492100
Copper
300/500v, 450/750V
XLPE or PVC
PVC or PE
Unarmored
Flame Retardant, Antiflaming, Fire resistance, LSZH
Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012
Uo/U is 450/750V,300/500,
Conductor: Solid Copper
Insulation: PVC
Number of cores: twin and earth, 2 core+earth
Other special characteristics: Design and manufacture according to the requirements of customers.
Standard: The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS 6004 standards etc. In addition, we can design and manufacture the products as the requirements of customers.
Service performance:
1. Rated voltage: 450/750V
2. Long-term working temperature: not be higher than 70°C
3. When laying the cable, the ambient temperature should not lower than 0°C
4. Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
6. Structure diagram
Section(mm2) | Conductor construction | Insulation Thickness | Sheath Thickness | Overall Diameter(mm) |
2*1+1 | 1.12/1.12 | 0.6 mm | 0.9 mm | 4.40*7.90 |
2*1.5+1 | 1.35/1.12 | 0.7 mm | 0.9 mm | 4.80*8.80 |
2*2.5+1.5 | 1.74/1.35 | 0.8 mm | 1 mm | 5.60*10.40 |
2*4+1.5 | 7*0.83/1.35 | 0.8 mm | 1 mm | 6.30*11.80 |
2*6+2.5 | 7*1.02/1.74 | 0.8 mm | 1.1 mm | 7.10*13.60 |
2*10+4 | 7*1.34/7*0.83 | 1 mm | 1.2 mm | 8.50*16.90 |
2*16+6 | 7*1.70/7*1.02 | 1 mm | 1.3 mm | 9.80*19.90 |
PVC insulated wires is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U).
Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power plant, householdelectrical applance,insurment and telecommunication equipment.
The 6242Y wire is suitable for outlets and lighting where pyrotechnic emissions and toxic smoke pose a potential threat to life and equipment, dry or wet locations, and is suitable for laying in-line troughs or pipes.
Cables with Low smoke zero halogen, fire resistance, flame-retardant is our advantage, we have National Patent Certificate on it.
We have CCC and ISO9001 certificate, we can accept ODM, OEM and also can accept personal customized.
Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012
Uo/U is 450/750V,300/500,
Conductor: Solid Copper
Insulation: PVC
Number of cores: twin and earth, 2 core+earth
Other special characteristics: Design and manufacture according to the requirements of customers.
Standard: The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS 6004 standards etc. In addition, we can design and manufacture the products as the requirements of customers.
Service performance:
1. Rated voltage: 450/750V
2. Long-term working temperature: not be higher than 70°C
3. When laying the cable, the ambient temperature should not lower than 0°C
4. Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
6. Structure diagram
Section(mm2) | Conductor construction | Insulation Thickness | Sheath Thickness | Overall Diameter(mm) |
2*1+1 | 1.12/1.12 | 0.6 mm | 0.9 mm | 4.40*7.90 |
2*1.5+1 | 1.35/1.12 | 0.7 mm | 0.9 mm | 4.80*8.80 |
2*2.5+1.5 | 1.74/1.35 | 0.8 mm | 1 mm | 5.60*10.40 |
2*4+1.5 | 7*0.83/1.35 | 0.8 mm | 1 mm | 6.30*11.80 |
2*6+2.5 | 7*1.02/1.74 | 0.8 mm | 1.1 mm | 7.10*13.60 |
2*10+4 | 7*1.34/7*0.83 | 1 mm | 1.2 mm | 8.50*16.90 |
2*16+6 | 7*1.70/7*1.02 | 1 mm | 1.3 mm | 9.80*19.90 |
PVC insulated wires is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U).
Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power plant, householdelectrical applance,insurment and telecommunication equipment.
The 6242Y wire is suitable for outlets and lighting where pyrotechnic emissions and toxic smoke pose a potential threat to life and equipment, dry or wet locations, and is suitable for laying in-line troughs or pipes.
Cables with Low smoke zero halogen, fire resistance, flame-retardant is our advantage, we have National Patent Certificate on it.
We have CCC and ISO9001 certificate, we can accept ODM, OEM and also can accept personal customized.
