YJV22,YJV32, VV22,VV32 ,YJLV22, YJLV32
XITE
8544492100
Copper or Aluminum
600/1000V
XLPE or PVC
PVC or PE or LSZH
SWA ,STA armoured
Flame Retardant, Antiflaming, Fire resistance, LSZH
| |

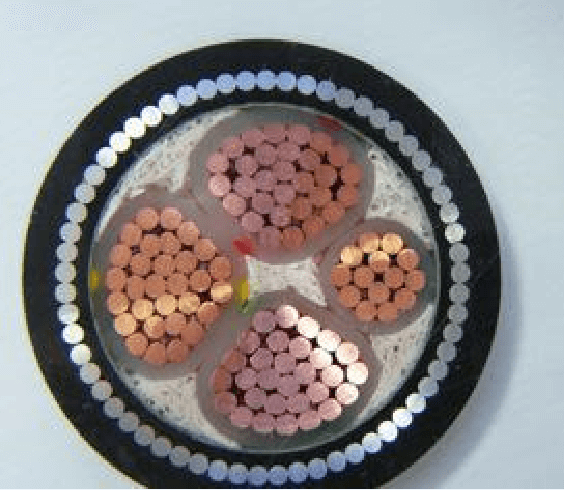

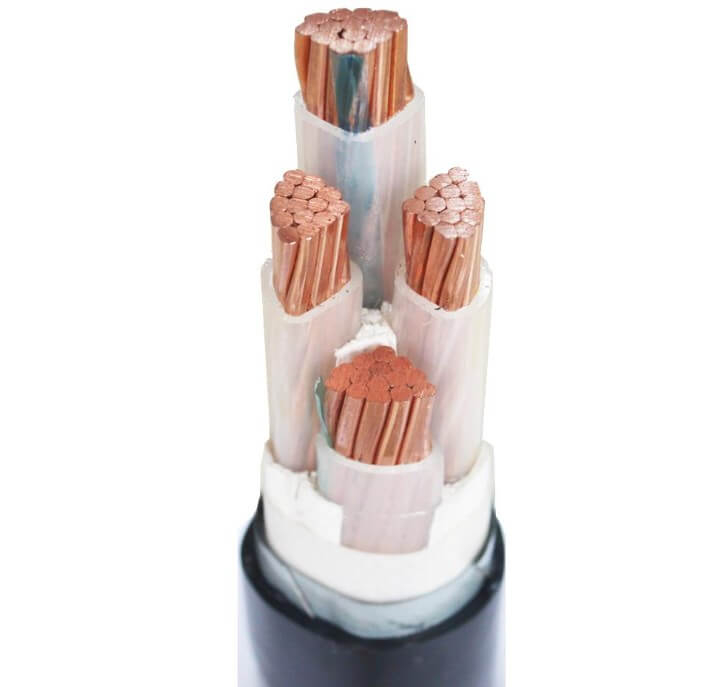

Power cable: Copper or Aluminum conductor electric power cable with XLPE or PVC insulation, PVC or PE outer sheath, STA steel tape armoured electrical power cable/kable

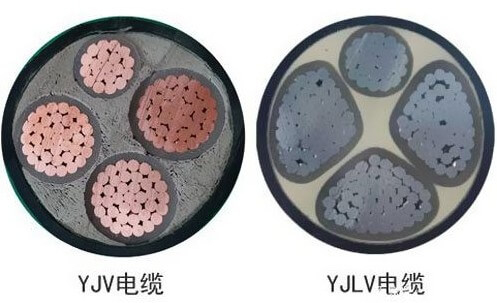

Type:YJV22,YJV23,YJV32, YJLV22,YJLV32
Core number: 4 core, 3+1 core , 3 core and 1 core
Production Range : 1.5mm2, 2.5mm2, 4mm2, 6mm, 10mm2,16mm2, 25 mm2 , 35 mm2 , 50 mm2 , 70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 , 240 mm2 300 mm2
Related Voltage: 0.6/1kV
| NO.of cores×section(mm²) | Normal insulation thickness (mm) | Normal thickness of oversheath | Approximate overall diameter of cable(mm) | Approximate weight of cable (kg/km) | |||||
| Cu | AL | ||||||||
| Unarmoured | Armoured | Unarmoured | Armoured | YJV | YJV22 | YJLV | YJLV22 | ||
| 4×4 | 0.7 | 1.8 | 1.8 | 12.6 | 18.1 | 268 | 430 | / | / |
| 4×6 | 0.7 | 1.8 | 1.8 | 13.8 | 17 | 356 | 545 | / | / |
| 4×10 | 0.7 | 1.8 | 1.8 | 16.9 | 19.1 | 557 | 752 | 390 | 517 |
| 4×16 | 0.7 | 1.8 | 1.8 | 19.5 | 21.6 | 819 | 1020 | 416 | 663 |
| 4×25 | 0.9 | 1.8 | 1.8 | 23.5 | 25.7 | 1241 | 1502 | 593 | 902 |
| 4×35 | 0.9 | 1.8 | 1.8 | 26.7 | 28.7 | 1631 | 1957 | 776 | 1096 |
| 4×50 | 1 | 1.8 | 1.9 | 28 | 32.6 | 2080 | 2812 | 961 | 1770 |
| 4×70 | 1.1 | 2 | 2.1 | 33.2 | 37.5 | 2952 | 3796 | 1302 | 2222 |
| 4×95 | 1.1 | 2.1 | 2.3 | 38 | 42.6 | 3970 | 4962 | 1693 | 2757 |
| 4×120 | 1.2 | 2.3 | 2.4 | 40.9 | 46.4 | 4894 | 5913 | 2077 | 3363 |
| 4×150 | 1.4 | 2.4 | 2.6 | 46 | 51.3 | 5980 | 7170 | 2852 | 3878 |
| 4×185 | 1.6 | 2.6 | 2.7 | 52.5 | 57.8 | 7442 | 8802 | 3173 | 4618 |
| 4×240 | 1.7 | 2.8 | 3 | 59.4 | 64.6 | 9764 | 11289 | 4032 | 5782 |
| 4×300 | 1.8 | 3 | 3.1 | 66.2 | 71.6 | 12122 | 13856 | 4924 | 6735 |
| 4×400 | 2 | 3.3 | 3.4 | 73.8 | 80.3 | 15624 | 18407 | 6272 | 9313 |
| 4×500 | 2.2 | 3.5 | 3.7 | 89.3 | 96 | 19877 | 23264 | 7667 | 11062 |
| 4×630 | 2.4 | 3.8 | 4 | 99.6 | 106.3 | 25124 | 28895 | 9514 | 13293 |
This product is suitable for power transmission and distribution under AC rated voltage 0.6/1kv and working frequency 50Hz lines.
Low Voltage power cable is used to transmit and distribute power in power transmission and distribution system of 1kV. It is generally applied to the fields including power, mines, construction, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.
| NO.of cores×section (mm²) | Permissible A mpacity (A) | Reference overall diameter of cable(mm) | Reference weight of cable(kg/km) | |||||
| YJV | YJV22 | |||||||
| Cu | Cu | Cu | ||||||
| In air | In ground | In air | In ground | Unarmoured | Armoured | YJV | YJV22 | |
| 3x2.5+1x2.5 | 28 | 36 | 28 | 35 | 11.6 | 14.8 | 212 | 357 |
| 3x4+1x2.5 | 37 | 47 | 37 | 45 | 12.7 | 15.9 | 277 | 434 |
| 3x6+1x4 | 47 | 60 | 47 | 57 | 13.9 | 17.1 | 363 | 534 |
| 3x10+1x6 | 64 | 81 | 64 | 78 | 16.1 | 19.3 | 527 | 724 |
| 3x16+1x10 | 85 | 106 | 85 | 102 | 18.6 | 21.8 | 766 | 992 |
| 3x25+1x16 | 113 | 137 | 113 | 132 | 22.2 | 25.4 | 1140 | 1409 |
| 3x35+1x16 | 139 | 164 | 139 | 158 | 24.6 | 27.8 | 1475 | 1772 |
| 3x50+1x25 | 173 | 198 | 172 | 192 | 27.7 | 31.2 | 1951 | 2299 |
| 3x70+1x35 | 222 | 246 | 233 | 239 | 31.9 | 36.7 | 2662 | 3406 |
| 3x95+1x50 | 271 | 293 | 273 | 286 | 36.2 | 40.8 | 3578 | 4398 |
| 3x120+1x70 | 318 | 334 | 319 | 325 | 39.9 | 44.7 | 4567 | 5487 |
| 3x150+1x70 | 370 | 375 | 369 | 365 | 45 | 50 | 5514 | 6570 |
| 3x185+1x95 | 427 | 422 | 421 | 412 | 49.4 | 54.4 | 6850 | 8003 |
| 3x240+1x120 | 507 | 492 | 503 | 480 | 54.9 | 60.1 | 8741 | 10045 |
| 3x300+1x150 | 599 | 560 | 590 | 546 | 62.9 | 68.3 | 11052 | 12570 |
Low voltage power cable have higher long-term working temperature and greater current rating, and under the condition of the same environment, XLPE cable may be reduced size (normal cross section) 1 or 2 class in comparison with PVC cable. These are not only improving the quality and properties of products, but also reduce cables' production cost.
Armoured Cable with steel tape to enhance the mechanical properties of the cable, the cable can withstand external mechanical pressure.
steel tape armor/steel foil armoured,steel wire armoured/steel wire armoring/SWA.
Steel tape armored cable models: VV22, VV23, VLV22, VLV23, YJV22, YJV23, YJLV22, YJLV23,ZR-VV22, NH-VV22,WDZ-YJV22, WDZ-YJV23,WDZ-YJY22
1. Cable conductor allowed working temperature doesn't exceed 70 ºC in a long term
2. When the short circuit happened (the longest duration is no more than 5 seconds), the highest temperature of the cable conductor does not exceed 160 ºC.
3. The environment temperature should not below 0 ºC when cable laying, To warm up first when the temperature lower than 0 ºC .
4. The minimum bending radius of the multicore-non armoured cable shall not be less than 12 times of the outer diameter of cables, and the minimum bending radius of the mutilcore-armored cables shall not be less than 15 times of the outer diameter of cables. The minimum bending radius of the single core armoured cable shall not be less than 15 times of the outer diameter of cable, and the minimum bending radius of the single core -non armoured cable shall not be less than 20 times of the outer diameter of cable
5. Structure parameter of rated voltage 0.6/1KV XLPE insulated power cable
Please note that the above these cables could make to Antiflaming power cable, Fire resistance power cable, LSZH power cable in rated voltage 0.6/1 KV, PVC or XLPE insulated, PVC outer sheath.
Cables with Low smoke zero halogen, fire resistance, flame-retardant is our advantage, we have National Patent Certificate on it.
We have CCC and ISO9001 certificate, we can accept ODM, OEM and also can accept personal customized.
| |
